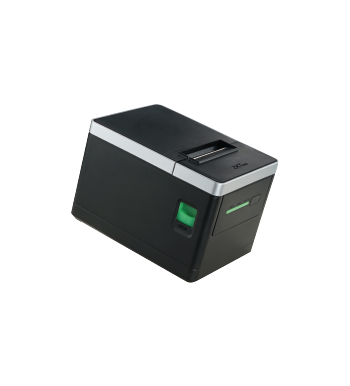

ZKP8008
  • Lightweight and clean in shape
  • High-quality printing at low cost
  • Low noise and high-speed printing

ZKP8008 is a high performance thermal receipt printer with auto-cutter. It has good printing quality, high printing speed and high stability, which is widely used in POS system, food service industry and many other fields.

  • Hidden cable slot, specially designed for wall mounting
  • Lightweight and clean in shape
  • High-quality printing in low cost
  • Low noise and high-speed printing
  • Easy for paper refill, easy maintenance and excellent structure
  • Low power consumption and low operating costs ( no ribbons or ink cartridges )
  • Compatible with ESC/POS print instruction set
  • Suitable for all types of commercial retail POS systems, Restaurant system, Industrial control systems.
Model Name ZKP8008

Printing


Print Method Direct Thermal Line Printing
Print Speed 260mm/sec
Print Command Compatible with ESC / POS
TPH 100 km

Character


Font A 12 * 24dots, 1.5(W) * 3.0(H)mm
Font B 9 * 17dots, 1.1(W) * 2.1(H)mm
Chinese 24 * 24dots, 3.0(W) * 3.0(H)mm
Alphanumeric ASCII 12 × 24dots

Barcode


1D UPC-A / UPC-E / JAN13(EAN13) / JAN8(EAN8) / CODABAR / ITF / CODE39 / CODE93 /
CODE128
Power Supply
Output DC 24V / 2.5A
Cash Drawer DC 24V / 1A

Paper


Paper Type Thermal Receipt Paper
Paper Width 79.5±0.5mm ( Print Width 72mm )
Paper Thickness 0.060 ~ 0.08mm
Roll Diameter 83mm
Paper Cutter Auto Cutter: Full or Partial Cut

Physical Environment



Temperature

5 - 45℃

Contrast Humidity

10% - 80%RH

Weight

2kg

Dimension

192 * 145 * 133mm (L*W*H)

Software



Driver

Android, iOS, Linux, Windows2000, Windows2003, WindowsXP, Windows7, Windows8,
Windows8.1

ZKP8008 Printer Driver

3.85 Mb Software
2019-02-27

ZKP8008 Printer Setting Tool

6.12 Mb Software
2019-02-27

ZKP8008

0.3 Mb Data Sheet
2020-10-13

ZKP8008 user manual

1.54 Mb User Manual
2019-02-27
