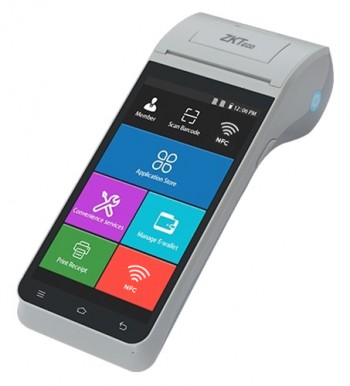

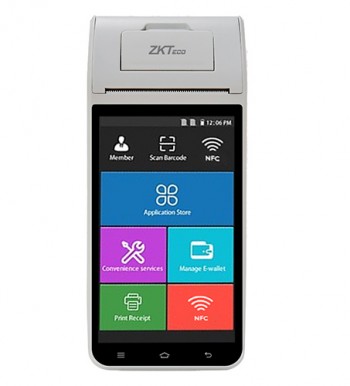

ZKH300
  • All-in-one handheld POS terminal
  • Android POS
  • Supports wifi, Bluetooth, 4G communication
  • Compact handheld Android POS with integrated thermal printer
  • ARM Cortex-A53 Quad-Core Processor
  • 5.5’‘ Bezel-free True-Flat IPS screen with capacitive touch function
  • Android 11.0 OS
  • Support Wi-Fi, Bluetooth, 4G communication
  • Simple and efficient further development

Basic Parameters


CPU ARM Cortex-A53 Quad-Core Processor
Memory RAM 2GB
ROM 16GB
OS Android11.0
Display 5.5'' IPS, Resolution 1280*720
Touch Screen True-Flat Projected Capacitive Multi-Touch
Thermal Printer Built-in 58mm thermal printer (Paper roll max. diameter 40mm)
Printing Speed 70mm/s
Rear Camera 5MP ( Supports barcode and QR code scanning)
SD Card Support 1 * SD 3.0 (Up to 128GB)
GPS Built-in GPS
Battery 7.4V 2800mAh battery
Power Input DC 5V 2A
Other Features Supports built-in virtual password keyboard
Supports DES, 3 DES, RSA, SHA - 256 and AES algorithm

COMMUNICATION METHODS


Wi-Fi IEEE 802.11 b / g / n
Bluetooth Bluetooth 4.0
SIM 2 * SIM Card Slot (2G / 3G / 4G Communication)

EXTERNAL I/O PORTS


USB 1 * Type C USB (OTG)
USB 1 * Mini USB serial port
NFC Supports ISO / IEC 14443 Type A&B
Fingerprint Reader Support SPI interface
Base Charging function only

GENERAL


Product Dimensions 200*83*57.5 (mm) (L*W*H)
Net Weight 414g
Appearance Gray (Optional: red)
Certificate CE, FCC

ENVIRONMENTAL REQUIREMENT

Working Condition Temperature: 0°C to 55°C
Humidity: 10% to 93% RH (non- condensing)
Storage Condition Temperature: -20°C to 70°C
Humidity: 10% to 93% RH (non-condensing)

STANDARD PACKAGE DETAILS

Package Dimensions

220 * 105 * 85 (mm)(L*W*H)

Net Weight

414g

Gross Weight

600g

Packing List

1 * POS Terminal, 1 * Power Adapter, 1 * USB Cable, 1 * Battery, 1 * Thermal Paper Roll

ZKH300_Datasheet_20240102

0.45 Mb Data Sheet
2024-01-02

ZKH300 User Manual_20211004

1.23 Mb User Manual
2021-10-09
