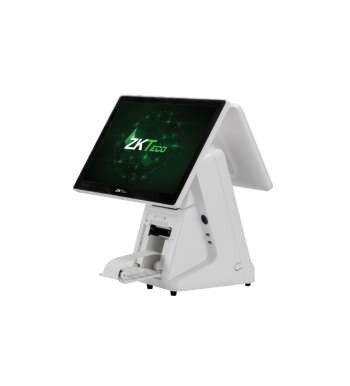

ZKAIO1000W

All in One Biometric Android POS Terminal

  • Built-in Printer
  • 11.6 inch TFT
  • ARM Cortex-A53
  • WIFI
  • 2G RAM
  • Muli-point
  • Android 6.0 Operating System
  • ARM Cortex-A53 CPU
  • Exquisite streamline design
  • Black and white is optional
  • 11.6 inch true-flat display
  • Multi-point projected capacitive touch screen
  • Built-in 58mm thermal printer
  • Easy-removable module design

MAIN BOARD


CPU ARM Cortex-A53
RAM 2GB
OS Android 6.0/ Linux

DISPLAY


Type 11.6’’ IPS
Resolution 1366x768 Pixel
Touch Screen Multi-point projected capacitive touch screen

MEMORY


Internal Memory 8GB Flash Memory (Optional 16GB)

EXTERNAL I/O PORTS


Serial Port 1 × RS232
USB Port 2 × USB 2.0
OTG Port 1 × micro USB 2.0
LAN Port 1 × RJ-45 (10 / 100M)
Cash Drawer 1 × RJ-11 (12 V)

PERIPHERALS


Built-in Printer 58mm thermal printer with 90mm/s Speed
WiFi Support 802.11 b / g / n
Speaker 2W

OTHERS


Power Supply 12V adaptor
Wall-hanging VESA stand
Color Black/White
Dimension 298*242*327(mm)

ZKAIO1000W_Data sheet_20220803

0.56 Mb Data Sheet
2022-08-03

ZKAIO1000W_User manual_20220809

0.99 Mb User Manual
2022-08-09
