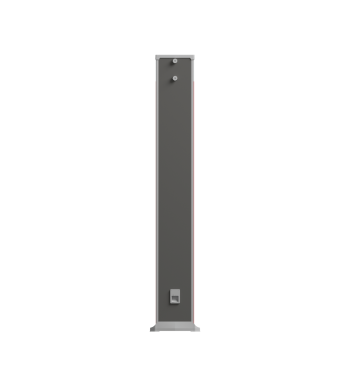

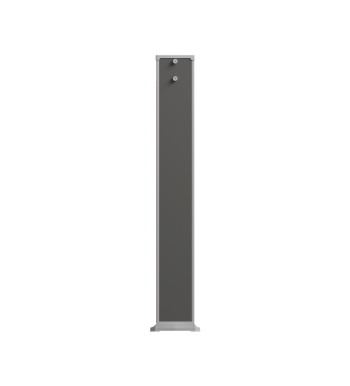

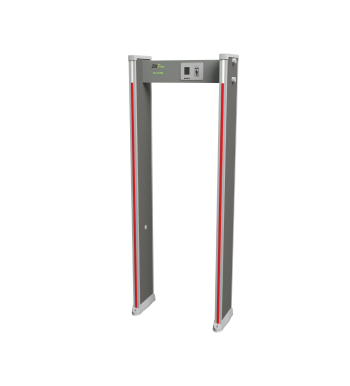

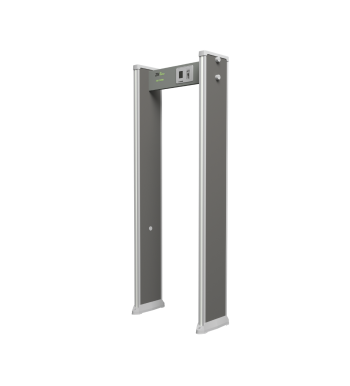

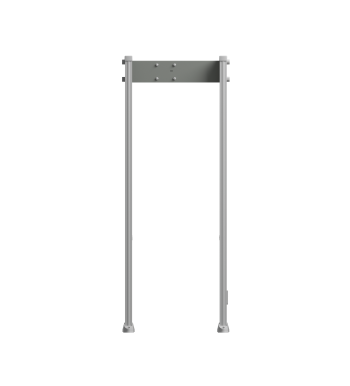

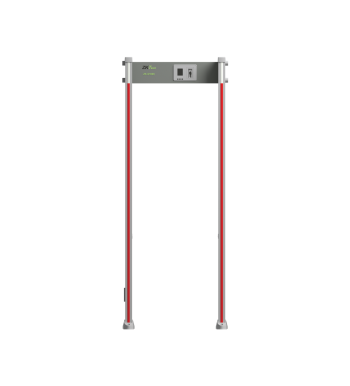

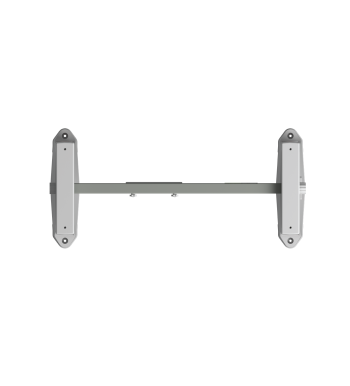

Cost-effective Walk-through Metal Detector with 9 detection zones
The ZK-D1090 is a budget-friendly walk through metal detector, ideal for ensuring human security in schools, public venues, and corporate entrances. With 9 detection zones and 500 adjustable sensitivity levels, it delivers reliable contraband detection, even for a coin with a diameter of 22.25mm, while maintaining safety for users. Equipped with a 2.8-inch color screen for easy operation, the ZK-D1090 provides clear alerts through synchronized LED and audio signals. It also tracks pedestrian counts and alarm occurrences for efficient monitoring. The detector features anti-interference technology and a high throughput design, making it perfect for high-traffic areas.
| Model Name | ZK-D1090 |
| Display | 2.8'' TFT Color Screen (240 X 320) |
| Physical Keypad | 4 keys |
| Overhead Control Unit | Channel, Time, People Count,Alarm Count |
| Detection Mode | Automatic Detection Mode / Infrared Detection Mode (default) |
| Maximum Detection Distance | 20mm to 2000mm (vertical) |
| Throughput | > 40 persons per minute |
| Sensitivity Level | 500 levels |
| Detection Zone | 3 vertical/ 3x2 grid /3x3 grid (adjustable) |
| Channel | 100 |
| Smallest Metal Objects Detected | Φ22.25*T1.85 mm(Steel-nickel Alloy) |
| Power Supply | AC100V to 240V (DC12V/3A) |
| Input Voltage | DC12V |
| Operating Current | 0.8A |
| Operating Power | 10W |
| Operating Time (Estimated) | 24 / 7 operation capability (continuous operation) |
| Detection Sound Alert | 6 types of alarm tones (adjustable), 0-6 levels of volume (max 80 dB) |
| Detection Visual Indicator | 2 sets of LEDs (red) evenly distributed on left and right door panels |
| Self-diagnosis Program | Support |
| Number of IR Groups | 1 |
| Detected Contrabands | Ferrous and non-ferrous metal weapons |
| Enclosure Material | Flame Retardant ABS Polymer, Medium Density Fiberboard, PVC |
| Operating Frequency | 5.7 kHz to 9.6 kHz |
| Operating Temperature | -10°C ~ 45°C |
| Storage Temperature | -20°C ~ 55°C |
| Operating Humidity | < 95% RH (non-condensing) |
| Ingress Protection | N/A (waterproof and dustproof), N / A (vandal resistant) |
| Application Environment | Indoor |
| Dimensions (L*W*H) | 2221 * 859 * 405mm |
| Lane Size (L*W*H) | 2007 * 710 * 315mm |
| Dimensions with Packaging (L*W*H) | 2280 * 457 * 280mm |
| Weight | Gross Weight: 35kg Net Weight: 27kg |
| Interface | Relay Output: NO Network Interface: NO |
| Remote Control | NO |
| Certifications | CE, FCC, ISO9001 |
