VG10CKQ

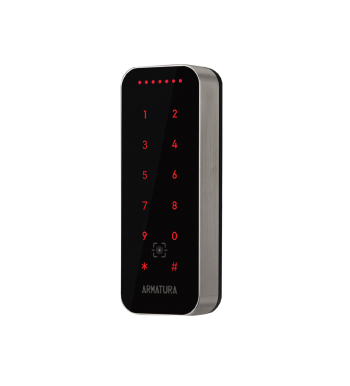

Vanguard Series - VG10CKQ All-Weather Outdoor Multi-Tech Reader
- Designed for Advanced Security
- Supports Over 100 RFID Credential Types
- Touch Keypad / QR Code Scanner
Smartphone as Card*
- Opening doors by presenting your smartphone to the reader.
- Bluetooth & NFC (Android OS Only)
Smartphone as Remote Key*
- Opening door by taping a button on your smartphone.
- Bluetooth

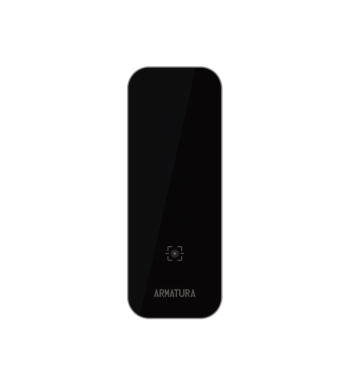

Compact Design with QR Code Scanner Options*
- Enjoy the flexibility of a touch keypad for password authentication, along with a QR code scanner for recognizing static and dynamic QR codes.

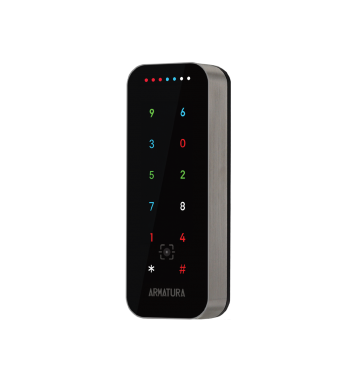

LED Light Programmability
- Discover the versatility of our customizable LED lights offering a wide range of colors and display styles to suit diverse scenarios.

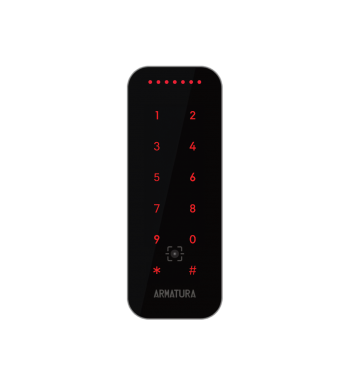

Compact RFID Reader with Touch Keypad
- Enhanced flexibility with embedded touch keypad for user authentication.
IP66 Water & Dustproof Protection
- Weather & Dust Proof Protection Rating compliant with IP66, built to withstand freezing cold winters, heavy rains and dry/hot summers
Certified of Data Protection
- Armatura's engineers and researchers have done their best to deliver Armatura's system with the highest level of data protection in the industry
IK07 Vandalproof Protection Level
- The IK07 Vandal-proof level enhances its ability to withstand malicious physical attacks, ensuring robust security.
*Armatura ID Smartphone App.
| Model Name | VG10CKQ | |
| Operating Frequency / Standards |
125 kHz
13.56 MHz: ISO14443 types A & B, ISO15693
2.4 GHz Bluetooth
|
|
| Functions | RFID, Bluetooth and QR code | |
| Keypad | Touch Keypad | |
| QR Code Scanner | Supported | |
| QR Code Scanning Pattern | Area image (640*480 pixel array) | |
| QR Code Scan Angle | Horizontal: 68°/ Vertical: 51° | |
| QR Code Capability |
One-Dimensional Code:
Code 128, Code 39, Codabar, Interleaved 2 of 5, ITF-6, ITF-14,
ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5,
Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey
Two-Dimensional Code:
QR Code, Micro QR
|
|
| QR Code Scanning Performance* |
Narrow Width
9mil（QR）
15mil（QR）
20mil（QR）
6mil（Code128）
9mil（Code128）
15mil（Code128）
20mil（Code128）
|
Depth of Field 1.5''-2.5''（40mm-65mm)
0.3''-4.3''(10mm-110mm) 0.5''-4.5''(15mm-115mm)
1.7''-3.7''(45mm-95mm)
0.9''-5.1''(25mm-130mm)
0.9''-6.1''(25mm-155mm)
1.7''-5.5''(45mm-140mm)
|
| Communications & Panel Connection |
Wiegand
OSDP (v2.2) via RS-485 (Up to 128bits SCP Secure Communication)
|
|
| Reading Distance |
13.56MHz & 125kHz: Up to 2.3"/60 mm (depending on environment and transponder)
Up to 393.7"/ 10m with a Bluetooth Smartphone (configurable distances on each reader)
|
|
| Data Protection |
AES128 (Secured Communication between Reader & Controller)
Secure Data Storage in EAL6+ Certified Crypto Chip
|
|
| Visual Indicator |
RGB LEDs (Configurable By 'Armatura Connect' Mobile APP)
|
|
| Audio Indicator |
Internal buzzer with adjustable intensity
(Configurable By 'Armatura Connect' Mobile APP)
|
|
| Power Requirement / Power Supply |
9 VDC to 24 VDC
|
|
| Operating Temperature |
-4°F - 122°F /-20°C~50°C
|
|
| Dimensions |
4.78" W x 1.77" H x 0.96" D (121.5 x 45 x 24.5mm)
|
|
| Tamper Switch |
Magnetic tamper detection system
|
|
| Certifications |
CE, FCC, RoHs3.0, WEEE，UL294(Coming Soon)
|
|
| Mounting |
Suited for mullion-mount door installations or any flat surface mounting
|
|
| Protection / Resistance |
Weather & Dust Proof Protection Rating compliant with IP66
Reinforced Vandal-proof Structure IK07 certified
|
|
