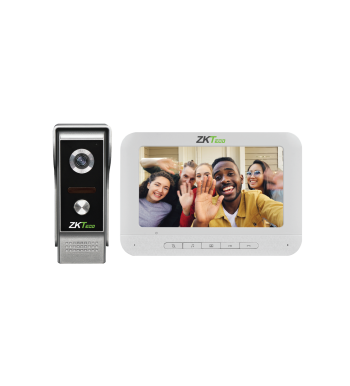

VDPO3-B3 Kit is the ideal and economic analog video intercom kit which includes a slim design of 7 inches TFT display monitor, outdoor full metal outdoor station with IP54 protection rating as well as the accessories & mounting brackets. Moreover, the handy installation and crystal clear intercom bring you the excellent experience beyond imagination.

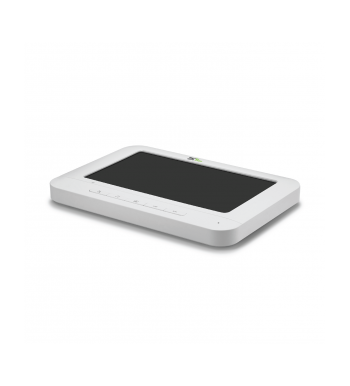

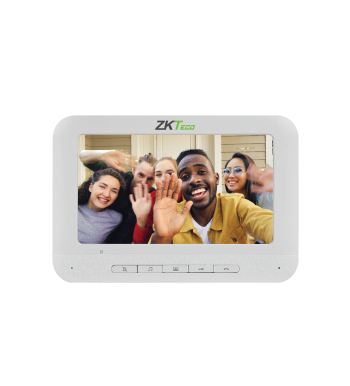

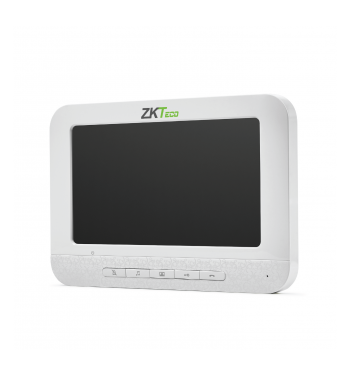

INDOOR MONITOR |
|
| OS | Linux |
| Screen Resolution | 800*480 |
| Communication Interface | CVBS |
| Speaker | Dual Speakers, 8Ω / 2W |
| Installation Method | Wall Mount or Flush Mount (on flat surface) |
| Color | White |
| Operating Temperature | -20°C to +60°C |
| Power | AC 100 - 240V |
| Certifications | CE, FCC, RoHS |
| Dimensions (H*W*D) | 195*132*13 (mm) |

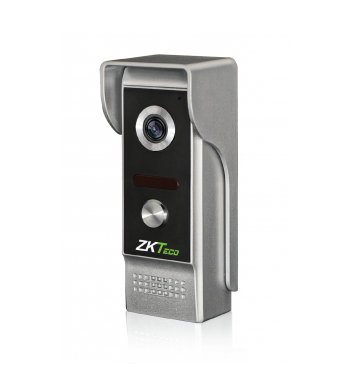

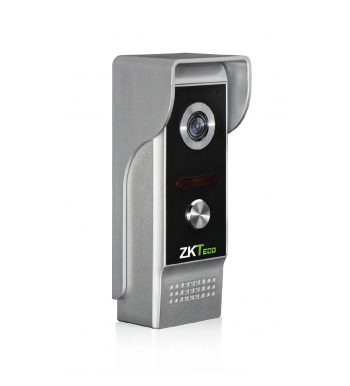

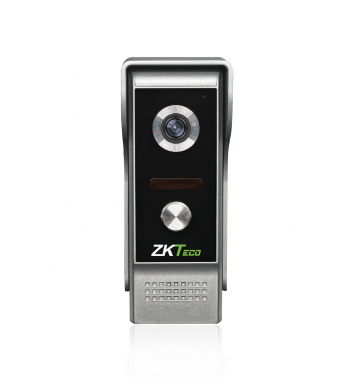

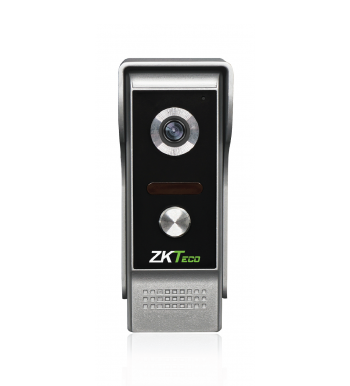

OUTDOOR STATION |
|
| Camera | 1MP |
| Camera Viewing Angle | 87º |
| Nighttime Visual Range | 0.2M - 1M |
| Speaker | Dual Speakers 8Ω / 2W |
| Dimensions(W*H*D) | 125*50*27 (mm) |
| Installation Method | Wall Mount or Flush Mount (on flat surface) |
| Relay Unlock | NO, NC, COM |
| Color | Black |
| Ingress Protection Rating | IP54 |
| Operating Temperature | -20°C to +60°C |
| Power | AC 100 - 240V |
| Certifications | CE, FCC, RoHS |
