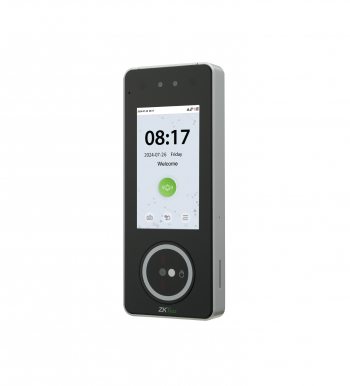

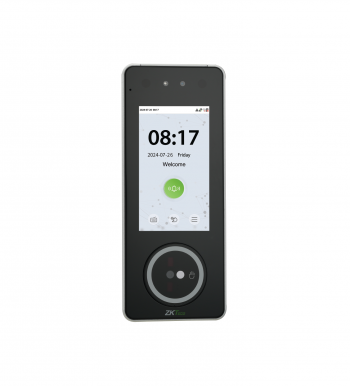

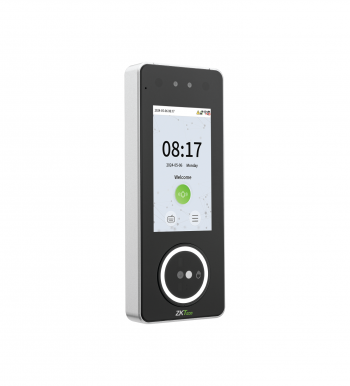

SpeedPalm-V5L is a smart access control terminal equipped with the visible light face and palm authentication technology, which applies the latest algorithms and advanced computer vision technology. It supports a variety of identification methods, including face/palm/card, etc. Besides, the terminal supports large capacity and speedy authentication.
SpeedPalm-V5L eliminates hygiene concerns with contactless biometircs technology. It is also equipped with anti-spoofing algorithms for facial and palm authentication to defend against almost all types of fake photo and video attacks. Importantly, high-precision palm authentication takes only 0.35s per hand. The palm data is then compared to the maximum of 15,000 palm templates.
Besides, SpeedPalm-V5L is an access control terminal featuring a video intercom function. It fully improves the video intercom experience and can be compatible with video intercom indoor unit with SIP protocol.
| Model | SpeedPalm-V5L |
| Display | 5"@ ISP Color LCD Touch Screen (720*1280) |
| Camera | WDR Low Light Camera @ 2MP |
| Operation System | Linux |
| Hardware | CPU: 1GHz Dual Core RAM: 512MB; ROM: 8G Supplement Light: Yes |
| Visual Indicator | Steady Green LED: Normal Status Steady White LED: Authentication in Progress Steady Red LED: Error/ Fault Steady Orange LED: Object nearby detected |
| Authentication Method | Face / Palm / Card / Password (Virtual Keypad) |
|
Face Template Capacity |
10,000 (1:N) |
| Palm Template Capacity | 5,000 (1:N) |
| Card Capacity | 20,000 (1:N) |
| Transaction Capacity | 200,000 |
| Biometric Verification Speed | less than 1 sec (Facial Authentication) less than 0.35 sec (Palm Authentication) |
| Touchless Biometric Recognition Distance | 30cm to 100cm (Facial Authentication) 5cm to 15cm (Palm Authentication) |
| False Acceptance Rate (FAR) % | FAR ≤ 0.01% (Visible Light Facial Authentication) FAR = 0.01% (Palm Authentication) |
| False Rejection Rate (FRR) % | FRR ≤ 0.02% ( Visible Light Facial Authentication) FRR = 1.3% (Palm Authentication) |
| Biometric Algorithm | ZKFace V3.6 & Palm V32.3 |
| Card Type | ID Card@125 kHz (Standard) IC Card@13.56 MHz (Optional) |
| Communication | TCP/IP*1 Wi-Fi (IEEE 802.1 a/b/g/n/ac) @2.4GHz ; 5GHz Wiegand (Input or Output)*1 RS485: ZKTeco RS485*1 Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, Alarm *1 |
| Standard Functions | ADMS, DST, Photo Capture, Event Photo Capture, T9 Keyboard (Input), 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Mask Detection, Multiple Verification Methods, SIP 2.0 Protocol, ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch, HTTPS / SSH Backend Access |
| Optional Functions | IC Card |
| Video Intercom | Video Intercom(ZKTeco Private Protocol via TCP/lP) Support Devices: Standalone Terminal: SpeedPalm-V5L(Only ZAM230 Platform) Indoor Monitor: VT07-B01, VT07-B01-W Video Intercom (Standard SIP Protocol) Support Devices: Standalone Terminal: SpeedPalm-V5L(Only ZAM230 Platform) Indoor Monitor: VT07-B22L, VT07-B26L-W Software: ZKBio CVSecurity, BioTalk Pro Mobile App: ZKBio Zexus |
| Power Supply | 12V DC 3A |
|
Operating Temperature |
-10°C to 45°C (14°F to 113°F) |
|
Operating Humidity |
10% to 90% RH (Non-condensing) |
|
Dimensions |
227.3 *92.3 * 24.5 (mm) (L*W*D) |
|
Gross Weight |
1.3 Kg |
|
Net Weight |
0.62 Kg |
|
Supported Software |
On-Premise Software: ZKBio CVSecurity / ZKBio CVAccess (AC PUSH) / ZKBio Time (TA PUSH) |
|
Installation |
Wall-mount (Compatible with Asian Gang-box / Single Gang-Box) |
|
Housing Material |
Aluminium Alloy |
|
Ingress Protection Rating |
/ |
|
Certifications |
ISO14001, ISO9001, CE, FCC, Equivalent to RoHS |
|
Order ID |
AC01-PV05H-47 |
