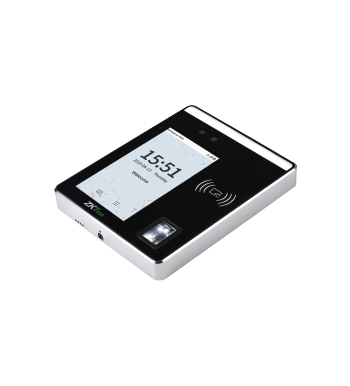

SpeedFace-H5L

Linux-Based Hybrid Biometric Access Control and Time & Attendance Terminal with Visible Light Facial Recognition

  • Proactive facial recognition
  • New height of anti-spoofing
  • Speedy recognition
  • Wide pose angle acceptance
  • Visible Light Facial Recognition
  • Anti-spoofing algorithm against print attack (laser, color, and B/W photos), videos attack and 3D mask attack
  • Multiple verification methods: Face / Fingerprint / Card / Password
  • Available card modules: 125KHz ID card (EM) /13.56MHz IC card (MF)
  • Supplement lighting with adjustable brightness
  • Capacity of 6,000 face templates
Display 5-inch Touch Screen
Face Capacity 6,000
Fingerprint Capacity 10,000
Card Capacity 10,000 (Optional)
Palm Capacity 3,000
Transaction Capacity 200,000
Operation System Linux
Standard Functions ADMS, T9 Input, DST, Camera, 9-digit User ID, Access Levels, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verify Modes
Hardware 900MHz Dual Core CPU
Memory 512MB RAM / 8G Flash
2MP WDR Low Light Camera
Adjustable Light Brightness LED
Communication TCP/IP, WiFi (Optional), Wiegand input / output, RS485*

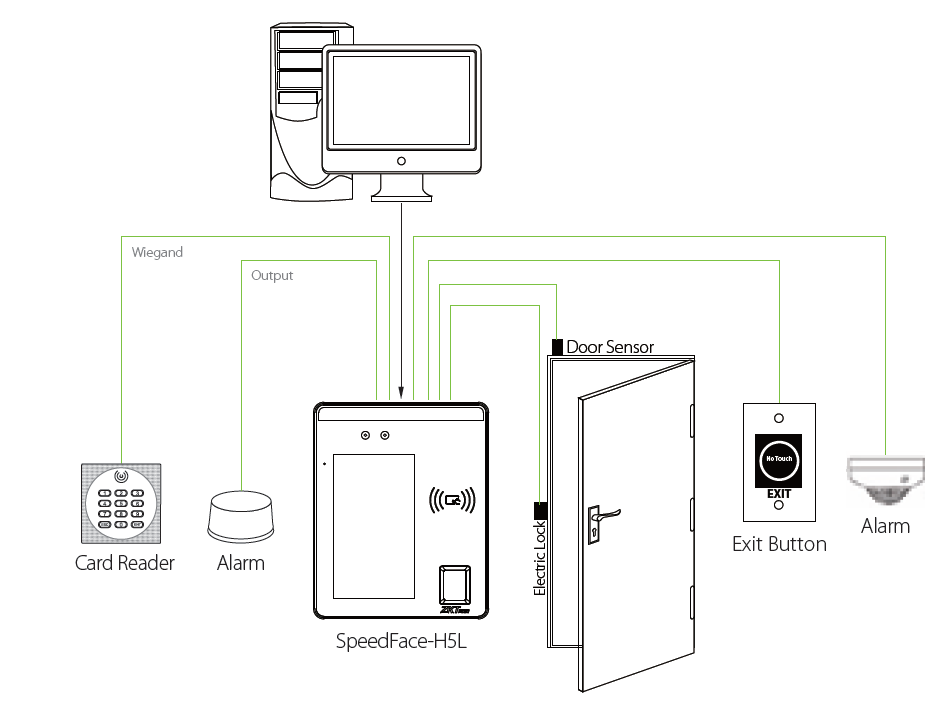

Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input
Optional Functions 13.56MHz IC card

Facial Recongntion Speed

 ≤1s

Biometrics Algorithm



 ZKFace 3.9 & ZKFinger V10.0 & Armatura Plam

Power Supply

 12V 3A

Working Humidity

 20% - 80%

Working Temperature

 0 °C - 45 °C

Dimension

 134.93 * 166.93 * 21.5mm (W*H*D)

Supported Software

 ZKBio CVAccess, ZKBio CVSecurity, BioTime 9.5, BioTime Cloud
';
