SBTL6000
  • Visible light recognition
  • Palm verification
  • QR code
  • Fingerprint verification
  • RFID

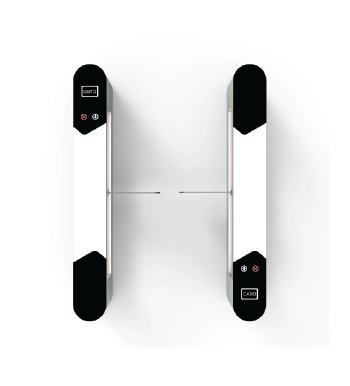

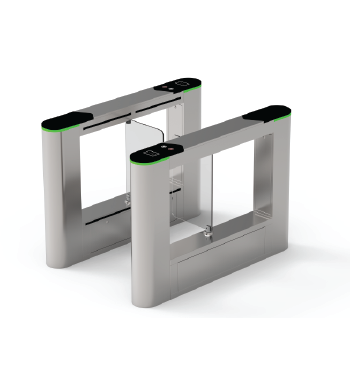

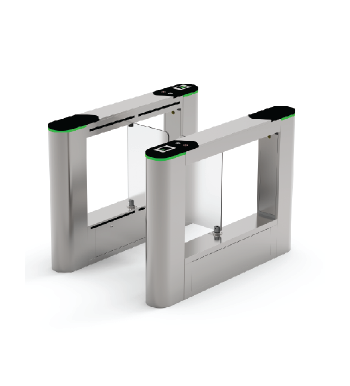

SBTL6000 is a swing barrier with a modular design that realizes fast switching between different readers. And reader installation can be completed by merely pull-out and plug-in. After installing the corresponding readers, SBTL6000 can support multiple verification methods, including RFID, fingerprint, QR code, palm verification, and visible light facial recognition. Especially, palm verification and visible light facial recognition can realize touchless entrance control that avoids hands exposing to bacteria and boost public hygienic security.

Power Requirements AC 100 ~ 120V / 200 ~ 240V, 50 / 60Hz
Working Temperature -28°C ~ 60°C
Working Humidity 20% ~ 95% (non-condensing)
Working Environment Indoor / Outdoor (if sheltered)
Lane Width (mm) 635
Infrared Sensor 6 pairs
Dimension (L*W*H) 1400 * 180 * 1000 (mm)
Dimension with Packing (L*W*H)
1580 * 340 * 1270 (mm) (2pcs)
Weight with Packing (kg) 150
LED Indicator Support
Cabinet Material SUS304 Stainless Steel
Lid Material SUS304 Stainless Steel + Acrylic
Barrier Material Tempered Glass
Barrier Movement Swing
Emergency Mode Support

SBTL6200-Datasheet 211227

0.8 Mb Data Sheet
2021-12-27

SBTL6000 Series User Manual_20200813

2.51 Mb User Manual
2020-08-13
