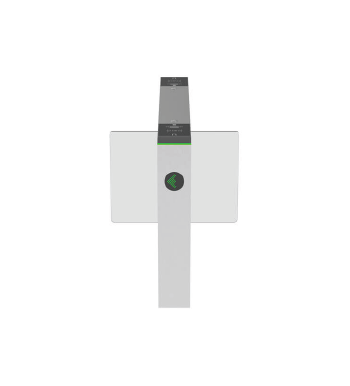

Mars-B1200 Series
  • Dual-lane swing barrier tunstile
  • Highly durable and low maintenance costs
  • Switchable reader panel

Mars Series is the latest and finest creation from ZKTeco, which designed to deliver an ultimate user experience, safety level, and integration friendliness. Up to 22 pairs (Mars-Pro Series) Infrared sensors greatly enhanced its anti-tailgate performance. Creative snap-fit, screwless, modularized design, which makes installation and maintenance work easier than ever, and saved up to 30% production lead time.

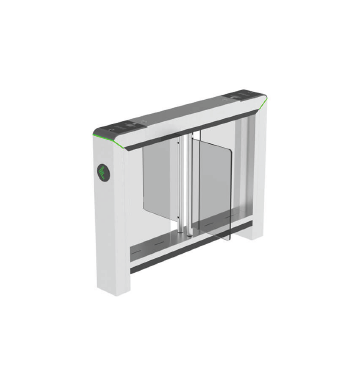

Mars-B1200 Dual-lane Swing Barrier Turnstile
Mars-B1211 Dual-lane Swing Barrier Turnstile (w/ controller and RFID reader)
Mars-B1222 Dual-lane Swing Barrier Turnstile (w/ controller and fingerprint & RFID readers)

Highly Durable and Low Maintenance Cost

  • Modularized structure design
  • Exposed mounting holes for easy installation
  • Mainly made of SPCC (option: SUS 316 stainless steel)

PGIC Controller

  • Equipped with a PGIC controller
  • Access control
  • General features and parameters settings on the controller's menu

Switchable Reader Panel

  • Six panels available: RFID only, RFID & Fingerprint, RFID & QR Code, RFID & Fingerprint & QR Code, RFID & Card Slot, RFID & Card Slot & QR Code
  • Reducing middlemen's inventory pressure
  • Reducing installation time and expenses

Installation Place for Facial Recognition A&C Terminal

  • Diameter: 34mm
  • Integration with Facial Recognition, Temperature and Mask Detection Terminals

LED Indicator

  • Visual cues for correct walking direction
  • Clear guidance with green and red illustration

Infrared Sensors

  • 6 pairs of infrared sensors for stronger tailgating detection
  • Maximum 12 pairs of sensors could be installed
Model Mars - B1200 Series
Power Requirements AC100V to 120V / 200V to 240V, 50 to 60Hz
Working Power 55W; 22W (stand-by)
Drive Unit Brushless Motor
MCBF 5 million
Technical Throughput Rate Up to 25 people per minute
Barrier Movement Swing
Noise <60dB
Infrared Sensor 6 pairs (option: ≤12 pairs)
LED Indicator Support
Working Temperature -25°C to 65°C
Working Humidity 20% to 95% (non-condensing)
Working Environment Indoor / Outdoor (if sheltered)
Lane Width 650mm (option: ≤900mm)
Dimensions (L*W*H) 1360 * 180 * 1010 (mm)
Dimensions with Packaging (L*W*H) 1510 * 365 * 1216 (mm)
Net Weight 61kg (±5kg)
Gross Weight 86kg (±5kg)
Cabinet Material SUS304 stainless steel (option: SUS316 stainless steel)
Lid Material SUS304 stainless steel
Barrier Material Acrylic (option: SUS304 stainless steel or glass)
Packing Material Wooden case
Protection Level IP34
