LockerPad-7B

Reliable and Secure Solution for Your Storage

  • Supports Visible Light facial recognition
  • Smart light design, adaptable to different light environment.

ZKTeco developed a networked electronic delivery locker module - LockerPad-7B, offering a reliable, secure, and convenient locker system

LockerPad-7B integrates with ZKBio CVSecurity and adopts multiple authentication methods, including facial recognition, and multi-tech card verification, to unlock the locker without a key, ensuring storage safety and enhancing convenience

Also, ZKTeco offers multi-tech card readers that integrate with the LockerPad-7B, including ProID Series, QR600 Series, and QR500 Series.

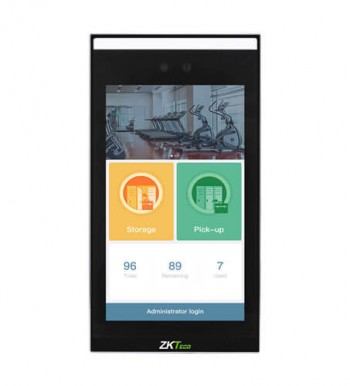

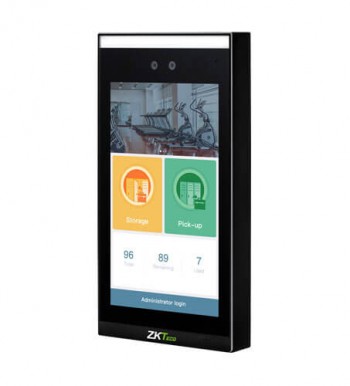

The LockerPad-7B embedded into a 7 inches colour touch screen display, creating a easy-to-manage self-service terminal for parcel and personal belongings storage. In addition, LockerPad-7B supports digital advertisement (image & video), which can drive foot trac and sales effectively

LockerPad-7B manually supports 96 cabinets with electric locks. (NOTE: Cabinets not included.)

Moreover, ZKTeco's after-sales service attained a high standard and reached ISO20000.



The LockerPad-7B is an easy solution and tackles the problem of people
carrying bulky items.

  • Supports Visible Light facial recognition.
  • Support anti-spoofing algorithm against photos attack, videos attack and 3D mask attack.
  • Smart light design, adaptable to different light environment.
  • Contactless facial recognition can effectively enhance the user experience.

A Unifed Platform

  • The Past:

Different types of devices in different modules with decentralized management.

  • The Present:

As an unified security management platform, ZKBio CVSecurity can manage multiple lockers simultaneously. Locker, Attendance, Access control, Parking and other functional modules are integrated in a platform.

Business Value

LockerPad-7B has a 7-inch touchscreen and supports digital advertisements placement and push notifications, which can improve foot traffic and help achieve business goals.

  • Supports PNG, JPG, JPEG, GIF format for image advertising resources.
  • Supports 3GP, MP4, MKV, WEBM format for video advertising resources.
  • Support maximum 7*24 hours of playing digital advertisement with no interruption.

Green Solutions

The LockerPad-7B is energy efficient and adopts facial verification to unlock the cabinet, reducing staffing costs and the cost of consumables such as printer paper.

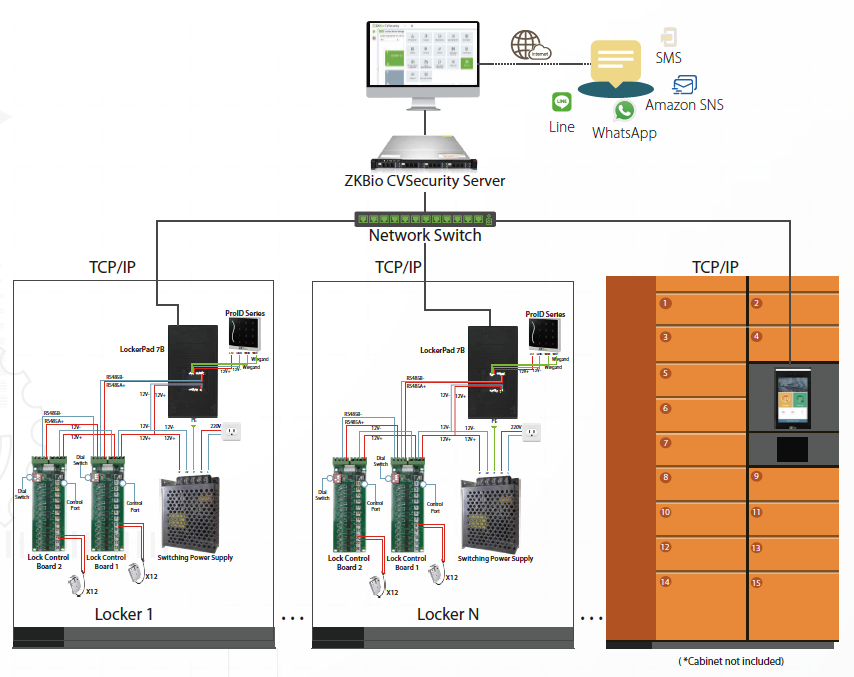

Configuration

ZKBio CVSecurity platform offers a user-centric and customizable locker management system. Currently, the LockerPad-7B controls the cabinet lock via a control board, and each LockerPad-7B can connect up to 8 control boards.

In addition, each control board contains 12 control ports, which can control a maximum of 12 cabinets. LockerPad-7B locker management system is accessible online through the web on a PC. The administrator can control and arrange the usage of cabinets by assigning access rights to fixed or temporary users.
The administrator can also view and collect real-time data on the use of cabinets, for example, the number of open or locked cabinets, available or occupied cabinets, and blocked or available cabinets.

Moreover, LockerPad-7B provides the cabinet unlock function in an emergency for safety checks. The administrator can open all the cabinets with one click in the operating system.



Model

LockerPad-7B

Capacity


Cabinet Capacity 96
( *support connection with up to 8pcs Lock Control Board through RS485 connection)
Face 10,000 (1 : N )
Card 10,000
Transactions 200,000

System Parameters


CPU High Performance 4 core 1.8GHz CPU
Memory 2G RAM / 16G ROM
Operating System Android 5.1.1
Algorithms ZKFace 5.6.2
Communication TCP/IP, USB Host, RS232, RS485, Wiegand Input, Wiegand Output,
Wi-Fi, WLAN:2.4GHz
Software ZKBio CVSecurity

Function Parameters


Standard Firmware Functions Multiple people and one cabinet setting,
Temporary takeout settings
Facial Recognition Facial Recognition Speed:Within 1s
Facial Recognition Distance:20cm to 50 cm
Card Types 125KHz ID (Standard)
13.56MHz IC Card / Multi-tech Card Module (Optional)

Operating Environment


Operating Temperature -10°C to 45°C (14°F to 113°F)
Operating Humidity 10% to 90%
Storage Temperature -15°C to 55°C (5°F to 131°F)
Storage Humidity <90%

Interface Parameters


Peripheral interface USB*1, Network Port*1, RS485*1, TXD*2, RXD*2, INWD*1, WD*1,
AUX*1, SEN*1, BUT*1, NO*1, NC*1, COM*1, AL*1

Other Parameters


Screen 7-inch LCD Touch Screen (720*1280 pixels)
Camera 2MP Dual Lens
Power Supply DC 12V 3A
Dimensions 113*210*22 (mm) / 4.4*8.3*0.87(inch)
Certification ISO14001; ISO20000 ; CE; FCC

Model

Lock Control Board

Power Supply DC 12V, 1A~1.5A
Communication RS485
Outputs 12* Relay
Supported Terminal. LockerPad-7B
';
