inBio Pro Series
  • Truly Internal Biometric Identification
  • Advanced Access Control Built-In
  • More than Door Control

InBio Pro Series is a project-oriented high-end product line with unique features such as embedded fingerprint verification and advanced access control functions, which can be managed by TCP/IP communication thru LAN or WAN networks.

The InBio Pro Series is the perfect match for ZKBioSecurity web-based software platform to provide a full-featured biometric security solution.

In combination with the FR1300 RS485 reader, the panels can authenticate users under multiple verification modes such as fingerprint, card, and password for a higher security level.

Truly Internal Biometric Identification

InBio Pro carries out the matching of fingerprints on the panels. The FR Series of readers transmit fingerprint templates to InBio Pro vis RS485 for fast and accurate matching with templates stored in the database. Wiegand inputs are also provided for traditional RFID readers.

More than Door Control

Access additional control and interface. After programming, auxiliary relays can function as lights, alarms, and intrusion detection panels. Extra locking devices or gate controllers can be accessed.

Communication

InBio Pro controllers can be installed easily on your network and support HTTP/HTTPS communication. The web server allows setting and modification of network parameters
directly and easily.

Options

InBio Pro controllers come in 3 sizes to suit project needs and reduce the cost of unused capacity. 1-door, 2-door, and 4-door models can be mixed and matched in optimized system architecture.

Capacity

Support up to 20,000 fingerprint templates, 60,000 badge users, and store up to 100,000 events and transactions. Data is preserved if power is lost. The controller continues to operate if the network connection is interrupted.

Advanced Access Control Built-In

Anti-Passback, First-Card Opening, Multi-Card Opening, Duress Password Entry, and Auxilary input/output linkages are built into controller firmware.

Lowest Total Cost of Ownership

Save cost. Controller firmware can be upgraded without any advanced tools. New features can extend and expand the value of your investment.

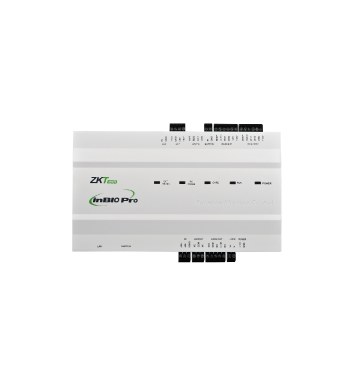

inbio-160 Pro

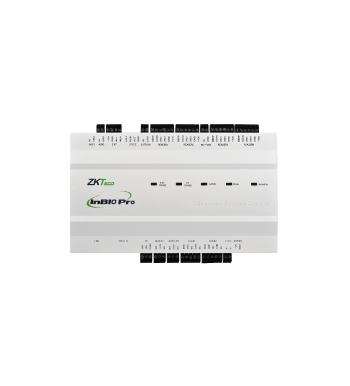

inbio-260 Pro

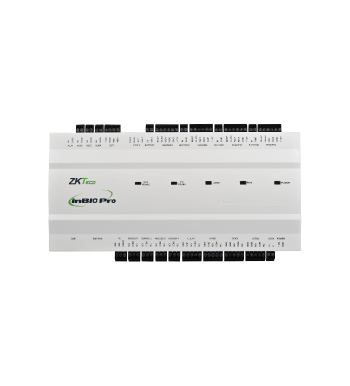

inbio-460 Pro

Number of doors controller

1 Door

2 Door

4 Door

Numbers of readers supported

4(2 RS-485 Reader, 2 26-bit wiegand reader)

8(4 RS-485 Reader, 4 26-bit wiegand reader)

12 (8 RS-485 Reader, 4 26-bit wiegand reader)

 Types of readers supported

 26-bit Wiegand and RS485 FR Series Reader

 26-bit Wiegand and RS485 FR Series Reader

 26-bit Wiegand and RS485 FR Series Reader

 Number of Inputs

 3(Exit button and Door Status, 1 AUX)

 6( 2 Exit  button, 2 Door Status, 2 AUX)

 12( 4 Exit  button, 4 Door Status, 4 AUX)

 Number of Outputs

 2 (1-Form C Relay for Lock and One Form C Relay for Aux Output)

 4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output)

 8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output)

 Card holders Capacity

 60,000

 60,000

 60,000

 Fingerprint Capacity

20,000

20000

20000

 Log Events Capacity

 100,000

 100,000

 100,000

 Communication

 TCP/IP

 TCP/IP

 TCP/IP

 Package Dimension

 350(L)×90(H)×300(W)mm

 350(L)×90(H)×300(W)mm

 350(L)×90(H)×300(W)mm

 Package Weight

 3.6kg

 3.6kg

 3.7kg

 CPU

 32 bit 1.2GHz CPU

 32 bit 1.2GHz CPU

 32 bit 1.2GHz CPU

 RAM

 128MB

 128MB

 128MB

 Flash Memory

 256MB

256MB

256MB

 Power

 9.6V-14.4V DC

 9.6V-14.4V DC

 9.6V-14.4V DC

 Operating Temp

 0-45 °C

 0-45 °C

 0-45 °C

 Operating Humidity

 20% to 80%

 20% to 80%

 20% to 80%

';

Installation Guide

Diode (FR107)

Screw Driver

Screws and Holders
