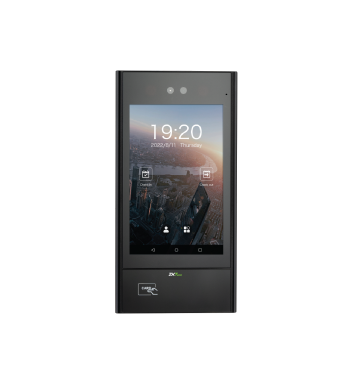

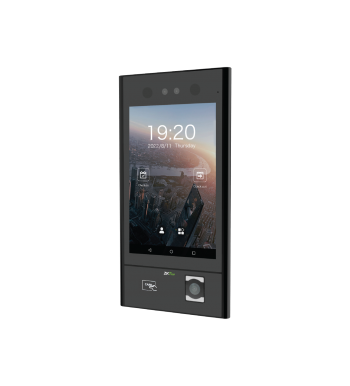

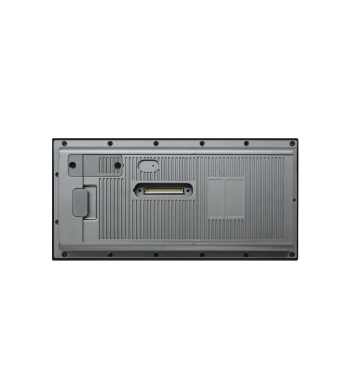

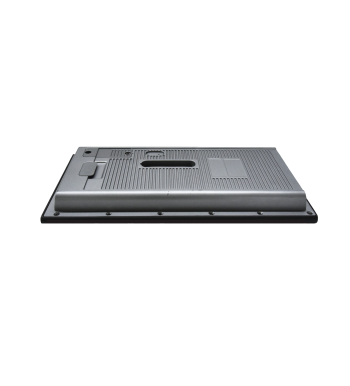

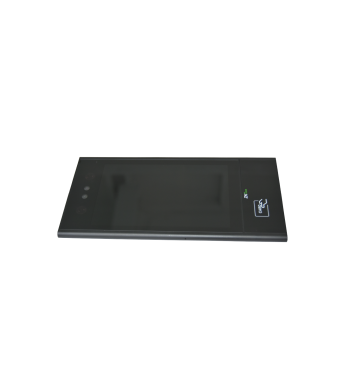

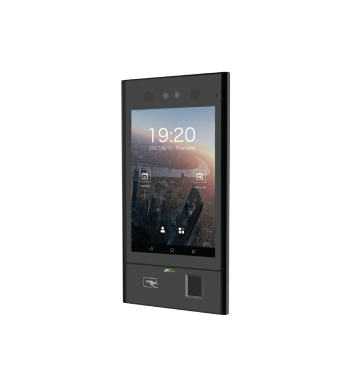

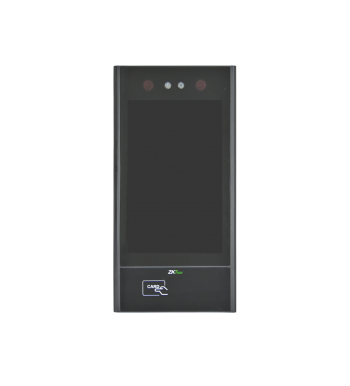

G5
Outdoor & Multi-Biometric Access Control Terminal
- 8 inch TFT color touch screen with narrow bezel design
- Support various biometrics authentication, including facial recognition, fingerprint verification, multi-tech cards detection and password
- Record capacity reaches 5,000,000 ; user capacity reaches 100,000 ; face templates capacity: 100,000 ; card capacity: 100,000
- Support Wiegand, RS-485, TCP/IP, Wi-Fi, Android LCDP, PUSH SDK
G5 is an multi-biometric access control terminal designed for outdoor use, the product supports various biometrics authentication, including facial recognition, fingerprint verification, multi-tech cards detection and password. Also with an 8 inch TFT color touch screen with narrow bezel design and IP66 waterproof & dustproof and IK04 vandal proof protection level.
- 8 inch TFT color touch screen with narrow bezel design
- Support various biometrics authentication, including facial recognition, fingerprint verification, multi-tech cards detection and password
- Facial recognition distance: 0.3m to 1.2m, facial recognition duration less than 1 second per user, facial recognition accuracy rate ≥99%
- Record capacity reaches 5,000,000 ; user capacity reaches 100,000 ; face templates capacity: 100,000 ; card capacity: 100,000
- Dual-frequency (125kHz and 13.56MHz) card module (standard)
- Support Wiegand, RS-485, TCP/IP, Wi-Fi, Android LCDP, PUSH SDK
- Support encryption of all biometric credentials and personal information transfer that reaches AES-256 standard.
- Andriod LCDP for the 3rd-party application integration
- IEEE 802.3af/at PoE (Power over Ethernet) power supply
- Mask detection and human body temperature detection (optional)
- Anti-spoofing algorithm against print attack (laser, color, and B/W photos) and video attack
- IP66 waterproof & dustproof and IK04 vandal proof protection level
SYSTEM |
|
| Operation System | Android 9.0 |
| CPU | 64bit Eight Core Customized Computer Vision CPU |
| Storage | 2GBLPDDR316GBeMMC |
| SDK | AndroidLCDP,PUSHSDK |
BASIC |
|
| Communication | TCP / IP, Wi-Fi, Bluetooth, USB |
| Display | 8 inch TFT LCDColor Screen |
| Screen Type | Capacitive Touch Screen |
| Resolution | 800*1280 |
| Camera | 2MP Binocular Camera |
| QR Code (optional) | DynamicQR codes on the ZKBioSecurity mobile application QR code, PDF417,Data Matrix, MicroPDF417, Aztec scanning in third-party development projects |
| Card Type | Dual-frequency (125kHz and 13.56MHz) Card module (standard) Multi-tech Card Module (optional) ISO14443A/B & ISO15693 & HID Prox |
INTERFACE |
|

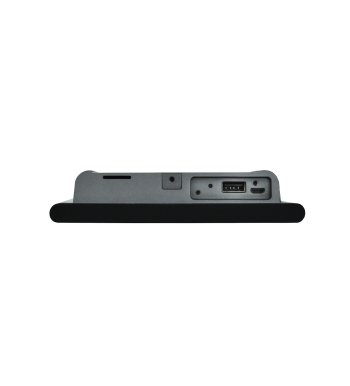

| USB | 1 USB 3.0, 1 USB 2.0, 1 Micro USB |
| Power Adapter | 12V 3A |
| Ethernet | RJ45, 1000M |
| RS232 | 1 |
| RS485 | 1 |
| Wiegand | 1 input, 1 output |
| Auxiliary input | 1 |
| Sensor | 1 |
| Exit Button | 1 |
| Lock | 1 |
| Alarm | 1 |
| Bell | 1 |
| Power out | 1, 12V |
| Reset Button | 1 |
PERFORMANCE |
|
| Protective level | IP66 without Fingerprint / QR Code Reader IP65 with Fingerprint / QR Code Reader IK04 |
| Card reading distance | 1cm–5cm |
| Face Recognition Range | Face-camera distance: Range 0.3 m to 1.2 m; Human height: 0.9 m to 2.4 m |
| Face Verification Accuracy | ≥99% |
| Face Recognition Time | < 1s |
| Fingerprint Sensor Type(optional) | Optical |
| Fingerprint Comparison Time | ≤0.5s |
| Facial Recognition Method | 1:1, 1:N |
| Facial Recognition Algorithm | ZKFace 5.6.2 |
| Fingerprint Verification Method | 1:1, 1:N |
| Fingerprint Recognition Algorithm | ZKFinger 10.0 |
| Facial Recognition FAR | 0.01% |
| Facial Recognition FRR | 1% |
FIRMWARE |
|
| User Capacity | 100,000 |
| Face Templates Capacity | 100,000 |
| Fingerprint Capacity (optional) | 30,000 |
| Card Capacity | 100,000 |
| Record Capacity | 5,000,000 |
| Standard Firmware Functions | Push, Schedule Bell, Automatic Status Switch, Record Query, Access Levels, Groups, Holidays, DST, Duress Mode (Password & Fingerprint), Anti-Passback, Customization of Wallpaper & Screen Saver,Tamper Alarm |
| Language | English, Korean, Latin American, Indonesian, Vietnamese, traditional Chinese, Portuguese, Spanish, Farsi, Japanese, Russian and Thai |
| Software | ZKBio Time, ZKBioSecurity, ZKBio CVSecurity |
GENERAL |
|
| Power Supply | 12V 3A; PoE (IEEE802.3af/at) |
| Dimensions | 279.5mm*141mm*29mm(11in*5.55in*1.14in) |
| Operating Temperature | -10℃ to 50℃ (14°F to 122°F) |
| Operating Humidity | <90%RH |
| Operating Environment | Outdoor |
| Gross Weight | 1.2kg |
| Installation Method | Wall-mounted or Turnstile top-mount bracket |
| Certifications | CE, FCC, ISO9001, ISO14001, IP66, IK04 |
