FBL4200 Pro
  • FBL4200 Pro Flap Barrier Turnstile for additional Lane
  • FBL4211 Pro Flap Barrier Turnstile for additional Lane
    (w/ controller and RFID reader)
  • FBL4222 Pro Flap Barrier Turnstile for additional Lane
    (w/ controller and fingerprint & RFID reader)

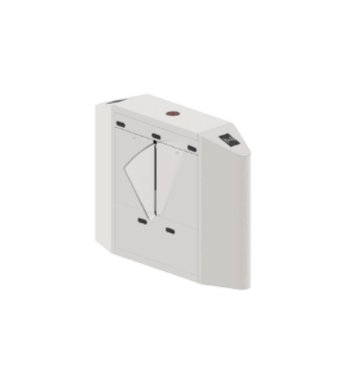

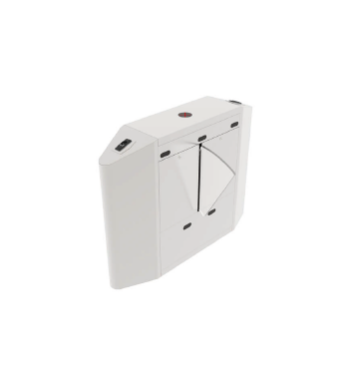

The FBL4200 Pro is a Flap Barrier Turnstile for additional Lane series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes FBL4200 highly durable.


FBL4200 Pro barriers are normally held in a locked position, thus denying access to the secured side. Upon FBL4200 Pro’s reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barriers retract upward automatically, thus allowing users passage to the secured side.


During emergencies, the barriers automatically retract upward, thereby avoid users being trapped. A capacitor board for power outage safety can be installed for retracting the barrier automatically. FBL4200 Pro provides both security and convenient space, all in a very durable and elegant compact design.

  • SUS304 stainless steel casework ensures long-lasting durability.
  • High-quality electrical components.
  • Barriers retract automatically during a power outage with capacitor board installed.
  • All smooth finishing. No exposed screws.
  • Ergonomic design makes the card and fingerprint authentication fast & simple for users.
  • FBL4200 Pro series is already integrated with our customers’ preference for either card or fingerprint access control reader. This greatly reduces installation time & expense.
  • FBL4200 Pro series and associated access control readers are all factory-tested prior to shipping.
  • ZKTeco provides true plug&play turnstiles with the lowest possible total cost of ownership in the industry.
  • LCD on the flap barrier control board, easy operation.

Power requirements

AC 100 ~ 120V/200 ~ 240V, 50/60Hz

Working temperature

-28℃ ~ 60℃

Working humidity

5% ~ 80%

Working environment

Indoor/outdoor (if sheltered)

Speed of throughput

RFID

Maximum 30/ minute

Fingerprint

Maximum 25/ minute

Lane width(mm)

600

Footprint(mm*mm)

1350*840

Dimensions(mm)

L=1350, W=300, H=1010

Dimension with packing(mm)

L=1500, W=400, H=1100

Net weight(kg)

84

Weight with packing(kg)

119

LED indicator

Y

Cabinet material

SUS304 Stainless Steel

Lid material

SUS304 Stainless Steel

Barrier material

Acrylic

Barrier movement

Retracting

Emergency mode

Y

Security level

Medium

MCBF

2 million
