ZKBio Sense Series

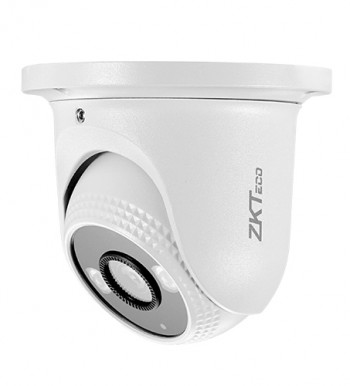

5 MP Smart Hybrid Light Fixed Lens Eyeball IP Camera
- 1/2.7” 5 MP CMOS Sensor
- H.265 Dual streams encoding
- High-quality optical lens: 2.8 mm
- 40 m IR / 30 m white light effective range
- Smart hybrid light (white light & IR integrated light)
ZKBio Sense series smart hybrid light IP cameras are the front-end cameras of intelligent video surveillance solution released by ZKTeco based on the Deep-Learning algorithm and Computer Vision technology.
By using advanced and powerful CPU, coupled with the embedded intelligent classification algorithm, ZKBio Sense series smart hybrid light IP cameras can accurately detect and recognize 3 key types of targets: human, vehicles and objects. Meanwhile, they can effectively filter out other useless objects to avoid false alarms, such as animals, leaves, shadows, and rain, etc.
ZKBio Sense series smart hybrid light IP cameras greatly improve the efficiency and safety of the entire video surveillance system, which can be widely used in different scenarios such as smart school, office, industrial park, community, public security, etc.
Smart Hybrid Light
ZKBio Sense series smart hybrid light IP cameras effectively improve the security at night by integrating ZKTeco’s latest Smart Hybrid Light design and intelligent perimeter protection functions. The built-in hybrid integrated optical coupler and intelligent switching logic can greatly reduce unnecessary light pollution in the environment, which is more green and energy-saving.
When no human or vehicle triggers the alarm event, this series of IP cameras operate in IR light mode. Once the alarm is triggered, the cameras will automatically switch to white light to capture color images and videos, and effectively deter intruders. Therefore, the design of smart hybrid light brings more user-friendly and flexible functions to meet different needs in various scenarios.
H.265 HEVC
H.265 is an evolutionary optimization of the traditional H.264, it includes a series of encoding strategy such as ROI, smart 2D / 3D noise reduction, etc. Delivering high quality video with up to 70% lower bandwidth
IVA (Intelligent Video Analytics)
ZKBio Sense series smart hybrid light IP cameras support multiple intelligent video analytic functions: Line Crossing, Area Detection, and Smart Motion Detection, which are based on human and vehicle targets classification.
True WDR
Powered by ZKTeco’s powerful ISP algorithm and high-quality sensor, ZKBio Sense series smart hybrid light IP cameras are built-in with true WDR feature, which can present excellent picture images in extreme contrast lighting environments
Protection
With precise mechanical and rugged metal casing design, the ZKBio Sense Series IP Cameras with IP67 water proof and dust resistant protection rating, and support to work at variety of harsh outdoor environments such as a wide temperature range from -30 °C to +60 °C, etc.
Camera |
||
| Model | ES-855P31C-S8-S-HL | |
| Image Sensor | 1/2.7” 5 MP CMOS Sensor | |
| Max. Resolution | 2592 (H) × 1944 (V) | |
| ROM | 128 MB | |
| RAM | 256 MB | |
| Scanning System | Progressive Scan | |
| Electronic Shutter Speed | 1/5 s to 1/100,000 s | |
| Min. Illumination | 0.001 Lux @ F1.3 (AGC on, Color) 0 lux (IR on, B & W) |
|
| S/N Ratio | > 52 dB | |
| IR Range | 40 m | |
| White Light Range | 30 m | |
| Illuminator On / Off Control | Auto / Manual | |
| Illuminator Number | 2 × IR / White Light integrated LED | |
| Smart IR | Support | |
| Angle Adjustment for Installation | Pan: 0° to 360° Tilt: 0° to 90° Rotation: 0° to 360° |
|
| TV System | PAL / NTSC | |
| Image Settings | Trigger mode, Brightness, Contrast, Saturation, Hue, Sharpness, AGC, White balance, Gamma, Backlight mode, adjustable by platform software or web browser |
|
| Software Reset Default | Support | |
| General Function | Heartbeat, Mirror, Privacy mask, Log, Password reset | |
Lens |
||
| Lens Type | Fixed Lens | |
| Lens Mount | M12 | |
| Mount Type | Board-in | |
| Focal Length | 2.8 mm | |
| Max. Aperture | F1.3 | |
| Field of View | FOV: 110° Horizontal: 113° Vertical: 60° Diagonal: 130° |
|
| Iris Control Type | Fixed | |
| Close Focus Distance | 1.5 m | |
| DORI Distance | Lens Detect Observe Recognize Identify | |
| 2.8 mm 43.0 m 16.0 m 9.0 m 4.0 m | ||
Video |
||
| Video Compression | H.265 / H.264 | |
| Resolution | 5 MP (2592 × 1944) / 4 MP (2560 × 1440) / 2 MP (1920 × 1080) / 1.3 MP (1280 × 960) / 720 P (1280 × 720 | |
| Max. Video Frame Rate | Main stream: | 50 Hz (PAL): 25 fps (2592 × 1944, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz (NTSC): 30 fps (2592 × 1944, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub stream: | 50 Hz (PAL): 25 fps (704 × 576, 640 × 480, 640 × 360) 60 Hz (NTSC): 30 fps (704 × 576, 640 × 480, 640 × 360) |
|
| Third stream: | N/A | |
| Video Stream Capability | Dual streams | |
| Bit Rate Control | CBR / VBR | |
| Video Bit Rate | H.264: 896 Kbps to 8 Mbps H.265: 1024 Kbps to 8 Mbps |
|
| Day / Night | Auto (ICR) / Color / B & W | |
| BLC | Support | |
| HLC | Support | |
| WDR | 120 dB True WDR | |
| Scene Self-adaptation | Support | |
| White Balance | Auto, Custom, Locked, Incandescent lamp, Warm light, Natural light, Fluorescent lamp | |
| Gain Control | Low, Mid low, Mid, Mid high, High | |
| Noise Reduction | 2D / 3D NR | |
| Motion Detection | Smart/ Ordinary (4 areas) | |
| Region of Interest (ROI) | Support (4 areas, Level 1 to 6) | |
| Defog | N/A | |
| Mirror | Support | |
| Image Rotation | 0° / 90° / 180° / 270° / Horizontal / Vertical | |
| Privacy Masking | 4 areas | |
| Corridor Mode | Support | |
| Digital Zoom | Support | |
| Anti-flicker | N/A | |
Audio |
||
| Built-in MIC | N/A | |
| Speaker | N/A | |
| Audio Compression | G.711 ulaw | |
| Environment Noise Filtering | Support | |
| Audio Sampling Rate | 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz | |
| Audio Bit Rate | 64 Kbps (G.711 ulaw) | |
Intelligent Video Analytics |
||
| IVA (Perimeter Protection) | Target Count, Object Lost / Left, Line Crossing, Area Detection, Smart Motion Detection (human and vehicle targets classification) |
|
| Intelligent Search | Support fast retrieval by human and vehicle targets classification | |
| Intelligent Video | Support fast retrieval by human and vehicle targets classification, playback and backup | |
Face Detection |
||
| Face Templates | N/A | |
| Face Quality Filtering | N/A | |
| Face Detected Per Frame | N/A | |
| Detection Area | N/A | |
| Detected Face Size | N/A | |
| Capture Response | N/A | |
Alarm |
||
| Basic Alarm Event | Network disconnection, IP conflict, Illegal access, Motion detection, Video tampering, External alarm |
|
| Smart Alarm Event | Target Count, Object Lost / Left, Line Crossing, Area Detection, Smart Motion Detection (human and vehicle targets classification) |
|
| Alarm Linkage Actions | Notify surveillance center, trigger recording, trigger capture, send email | |
Network |
||
| Simultaneous Live View | Up to 15 channels | |
| Network | 1 RJ45 10 M / 100 M self-adaptive Ethernet port | |
| SDK and API | Support SDK, API and ONVIF | |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; account lockout; security logs; IP filtering; trusted boot; trusted execution; trusted upgrade; password protection; complicated password; basic and digest authentication for HTTP / HTTPS; TLS; IP address filter; Security Audit Log |
|
| Protocol | TCP / IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL / TLS, PPPoE, SNMP, WebSocket |
|
| Interoperability | ONVIF Profile S / T / G | |
| User / Host | Up to 256 users can be added. 3 user levels: admin, operator and guest | |
| Network Storage | FTP | |
| Web Browser | IE / Edge / Firefox / Chrome / Safari | |
| Management Software | AntarVis 2.0 / ZKBioSecurity IVS / ZKBioAccess IVS / ZKBio CVSecurity / ZKBio CVAccess | |
| Mobile Application | AntarView Pro+ (iOS & Android) | |
| On-Board Storage | N/A | |
| Operation System | Windows | |
| P2P Cloud Service | Support | |
Port |
||
| Audio Input | N/A | |
| Audio Output | N/A | |
| Alarm Input | N/A | |
| Alarm Output | N/A | |
Interface |
||
| Reset Button | N/A | |
| ANR | N/A | |
| USB | N/A | |
| RS485 | N/A | |
Power |
||
| Power Supply | PoE (IEEE802.3af, Class 3), DC 12 V ± 10% reverse polarity protection | |
| Power Consumption | Basic ≤ 3 W (12 VDC); 4.5 W (PoE) | |
| Power Interface | Ø 5.5 mm coaxial power plug | |
Structure |
||
| Casing Material | Aluminium Alloy | |
| Dimensions | Φ107 × 107 (mm) | |
| Net Weight | 0.30 KG | |
| Gross Weight | 0.45 KG | |
Environment |
||
| Operating Conditions | –30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing) | |
| Storage Conditions | –30 °C to +60 °C (–22 °F to +140 °F) / Humidity 95% or less (non-condensing) | |
| Ingress Protection Rating | IP67 (waterproof and dustproof) | |
Certifications |
||
| Certificate | ISO9001, ISO14001, CE, FCC | |
