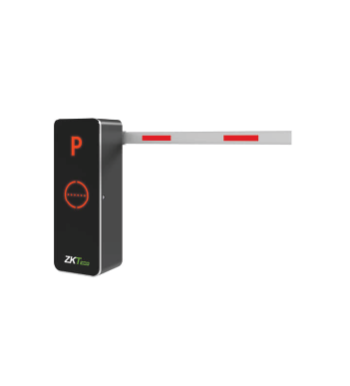

BGM1000 SERIES

Barrier Gates with New Chassis Appearance

  • DC 24V brushless motor with encoder
  • Streamline casingwith LED
  • Optional a heater system

The BGM1000 Series of barrier gates adopts ZKTeco's interactive LED chassis design, programmable control panel, high-efficiency Brushless DC motor, and SCM421 material gear transmission structure. It has the advantages of fast speed, stable quality, rich function expansion, and so on. It is a much comprehensive barrier gate.

  • DC 24V brushless motor with encoder
  • Automatic obstacle detection
  • ZKEasyGO APP
  • Embedded Programmaboe controller
  • Automatic obstacle detection
  • Adjustable opening and closing speed
  • Barrier arm's length from 3m to 6m
  • Streamline casing with LED
  • Emergency opening
  • Adjustable angle of rise/fall
  • Optional a heater system
  • Automatic delay closing
  • Backup battery connection

Model

BGM1030L/R

BGM1045L/R

BGM1060L/R

BGM1045L/R-LED

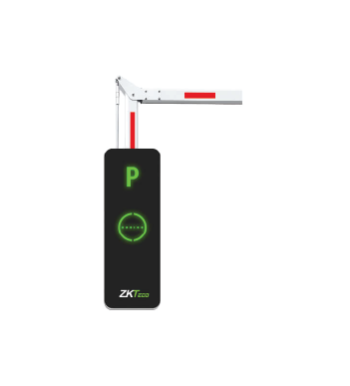

BGM1145L/R-90
Operating Speed 1.5s 2.5s 5s 2.5s 2.5s
Boom Arm Length 3m 4.5m 6m 4.5m 4.5m
Boom Arm Type Straight boom Telescopic boomStraight boom with LED Straight boom with LED  Folding boom
Chassis Dimensions (W*L*H) 350*280*1000 (mm)
Motor Type DC 24V brushless motor
Motor MCBF 3 million times
Output Power 120W
Rated Current 6A
Power Supply AC 220V, 50Hz / AC 110V, 60Hz
Remote Control Distance ≤30m
Operating Temperature -35°C to 70°C
Operating Humidity <90%
Chassis Weight 45kg
