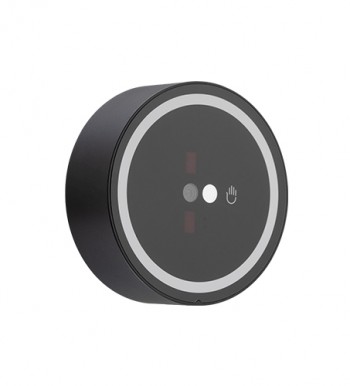

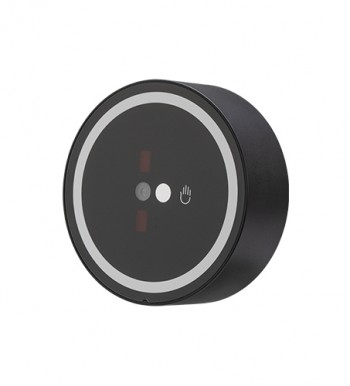

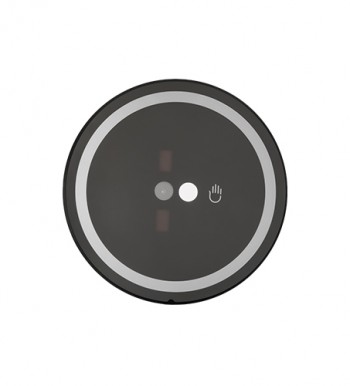

AMT-PVR-50

Standalone Dual-Camera Palm Reader



  • Dual cameras to capture high-quality color and grayscale palm images of palm print and palm vein.
  • Wide-angle and short-focus lens for an excellent user experience.
  • Built-in algorithms for palm detection, liveness detection and feature extraction, providing fast development and flexible deployment
  • Adaptable to wide range of varying lighting conditions from 0.01 LUX to 100,000 LUX.
  • 2-in-1 USB cable for both power supply and data communication offers convenience, cost savings, space efficiency, compatibility, and versatility
  • Supports 125 kHz, 13.56 MHz frequency credentials. Supports multi-tech RFID card types, covering most of the common card formats in the market.
  • Compatible with MultiBio SDK and supports Windows, Android and Linux mainstream platforms.
  • Easy to use, fast identification and safe privacy protection. The palm reader provides excellent biometric authentication experiences with a simple wave of the hand.
  • Fields of application: Physical and digital security, point of sales and payment service, patient identity in healthcare, public transport and airport or border control, campus security and attendance services, customer identification and VIP access for retail business, etc.

                                                              General Information
Processor 800 MHz Dual Core Cortex A53 Processor, 1.5 TOPs NPU
Memory 256MB RAM and 256MB Flash
Camera 1.3 MP infrared camera; 1.3MP visible light camera
Interface USB 2.0
Operating Frequency/
Standards		 125KHz
13.56MHz: ISO14443A, ISO14443B, JIS X6319-4, ISO15693
Card Type ID card, IC card, MF card
Communication UVC and HID Protocol
Power Supply DC 5.0V/ 1.0A
Power Consumption < 2.0W (standby); < 4.0W (operation)
Operating Temperature -10°C to 55°C / 14°F to 131°F
Storage Temperature -20°C to 65°C / -4°F to 149°F
Operating Humidity 15% to 95% RH ( non-condensing)
15% to 95% RH ( non-condensing) 85.0 (L) x 85.0(W) x 28.7(H) (±1 mm)
Dimensions 85.0 (L) x 85.0(W) x 28.7(H) (±1 mm)
Weight 150g
Certifications(s) CE, FCC, RoHS

                                                              Sensor

Camera Type

Visible Light Camera

Infrared Light Camera
CMOS                                 1/5” CMOS, 1.3MP
Optical Wavelength 440 nm to 650 nm 850 nm
Image Type 24-bit RGB true color 256 Grayscale Levels
Illumination Range                            0.01 Lux to 100,000 Lux
Exposure Mode                                        Auto Expose on Region of Interest (AE on ROI)
Image Resolution (Pixel) Raw: 1024W * 1280H
Output: 720W * 1280H		 Raw: 1024W * 1280H
Output: 720W * 1280H
Shutter Type                                Global shutter
Field of View (FOV)                                    Horizontal: 116°, Vertical 95°, Diagonal: 145°
Frame per second                                25fps /30fps
Distortion Rate                                 <2%

                                                               Built-In Algorithms
Biometric Recognition Method Palm
Recognition Distance 5cm-15cm
Authentication Mode[1] 1:1, 1:N
1:N Capacity[2]: 30,000
Palm Liveness Detection Time
Feature Template Extraction Time <25ms
Comparison Time <30ms
Posture Adaptability Yaw≤ 30°, Pitch≤ 45°, Roll≤180°, Bend≤ 20°
Accuracy* FRR=0.17% when FAR=0.001%
Authentication Speed ** < 100ms
