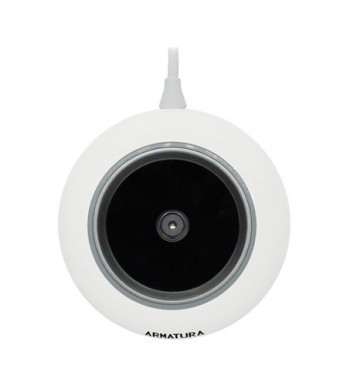

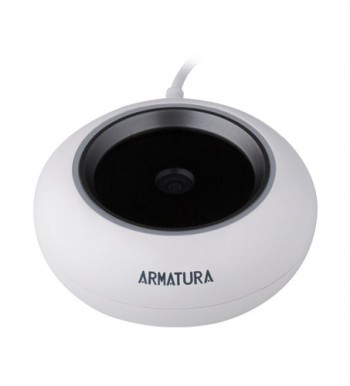

AMT-PVR-10

Near-Infrared Light Palm Reader



  • AMT-PVR-10 palm reader enclosure embeds the AMT-PVM-10 module, a single-lens Near-Infrared (NIR) light camera module. The reader is used to collect grayscale palm images formed by palm prints and subcutaneous palm vein patterns for biometric recognition
  • Compared with face recognition technologies, palm-based biometric recognition has less privacy concern, can be more easily accepted by users. It provides an ideal alternative biometric solution where face recognition is heavily concerned.
  • AMT-PVR-10 takes enhanced auto exposure approach with built-in Infrared LED to ensure superior palm image quality in varying indoor and most outdoor environments.
  • Palm vein patterns are unique and life-long invariable to each person, invisible to human eyes, and formed by active blood flowing in live tissues. Its image can be captured only by special Infrared camera like AMT-PVR-10 reader which delivers highly secure anti-spoofing protection for user authentication
  • The built-in distance sensor auto triggers the reader’s built-in Infrared LED when detects the approaching palm. This ensures consistently high-quality palm images in all lighting conditions, conserves the power and extends the hardware lifespan
  • The tri-color LED lights around the reader provides friendly interactive experience. Programmed by PalmLite SDK, LED’s dynamic lighting assists guiding user’s palm positioning over the reader and displays device operational status in real time.
  • Wide field-of-view of the module lens makes palm enrollment and authentication fast and simple for individuals having varying heights.
  • The built-in HDR sensor offers the module longer palm-read-range up to 15 inches
  • Single 2-in-1 USB 2.0 cable provides both data communication and power to the module
  • 100% hands-free user experience. AMT-PVR-10 provides a simple, natural, hygienic, non-invasive, and stress-free way for identity authentication. This is utmost important to prevent the spread of virus when the device is used in public.
  • Portable, light weight, compact size with USB 2.0 interface makes it ideal for computer-based user authentication
  • For price-conscious customers, the module and Armatura PalmLIte SDK together provide a cost-effective biometric identification solution.







General Information

Interface USB 2.0
Power Supply DC 5.0V/ 400mA
Power Consumption ≤0.85 W (standby); ≤2.0W (operation)
Operating Temperature -10°C ~ 55°C / 14°F ~ 131°F
Storage Temperature -20°C to 80°C / -4°F ~ 176°F
Operating Humidity 0 ~ 90% RH
Dimensions (D*H) 83 (D) * 34 (H) mm (±1mm)
USB Cable Length 1.0 m / 3.3 ft
Indicator LED Red, Green, Blue
SDK Armatura PalmLite SDK 12.0
Certification CE, FCC, RoHS, WHQL


Sensor

CMOS   1/2.7’’ HDR CMOS Sensor
Dynamic Range   83 dB
Optical Wavelength   850 nm
Image Type   256 Grayscale Levels
Image Resolution   480W * 640H
Default Output Format   MJPEG
Distortion Rate   ≤1%
Field of View   Horizontal: 37°; Vertical: 48°; Diagonal: 58°
Maximal Frame Rate   25 fps
Recognition Distance   15 cm ~ 35 cm / 6 inch ~ 14 inch



armatura_datasheet_amt-pvr-10_datasheet_zkteco

0.49 Mb Data Sheet
2023-08-03
Download
