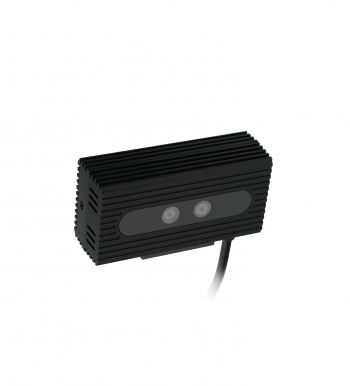

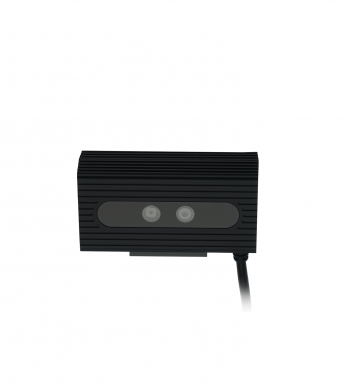

AMT-FAPVR-30

Dual-Lens Multimodal Standalone Reader for Face and Palm Recognition

  • The key feature highlights of the Armatura 30 series multimodal biometric modules:
  • Highly adaptive standalone touchless face and palm recognition modules for a wide range of applications.
  • Common core board which offers 2.4 TOPs of computing power for AI.
  • Dual camera technology to capture high resolution infrared light and RGB images of face and palm.
  • Auto exposure on region of interest to capture high-quality face and palm image to ensure recognition accuracy.
  • Supports UVC video stream and HID data communication protocols.
  • Built-in face and palm recognition algorithms for full-cycle biometric recognition.
  • AI-based high-accuracy liveness detection algorithm to prevent spoofing attack.
  • Large volume flash storage with support for up to 30,000 face templates and 5,000 palm templates.
  • Lightweight, compact design with developer-friendly interfaces for easy integration with hardware and software applications.
  • Currently available modules include:
    • AMT-FAPVS-30 standalone multimodal module for built-in integration.
    • AMT-FAPVR-30 standalone multimodal reader for direct connection.

General Information
Processor 1.2GHZ Quad Core ARM Processor, 2.4 TOPS NPU
Memory 1 GB RAM and 512MB Flash
Camera 1.3 MP Infrared light camera; 2.0 MP visible light camera
Interface USB 2.0
Communication UVC and HID Protocol
Power Supply DC 5.0V/2.0A
Power Consumption < 2.5W (standby); < 3.5 W (operation)
Operating Temperature -10°C ~ 55°C / 14°F ~ 131°F
Storage Temperature -40°C ~ 85°C / -40°F ~ 185°F
Operating Humidity 15% ~ 95% RH
Dimension AMT-FAPVR-30: 80.0L x 40.0W x 26.0H (mm)
Certifications CE, FCC, RoHS

Sensor
Camera Type Visiblie Light Camera Infrared Light Camera
CMOS 1/2.8” HDR CMOS, 2.0MP 1/4” CMOS, 1.3MP
Dynamic Range HDR mode 106dB N/A
Optical Wavelength 440 nm ~ 650 nm 940 nm
Image Type 24-bit RGB true color 256 Grayscale Levels
Illumination Range 0.01 Lux to 50,000 Lux 0.01Lux to 20,000Lux
Exposure Mode Auto Expose on Region of Interest (AE on ROI) Auto Expose on Region of Interest (AE on ROI)
Image Resolution (Pixel)

Raw: 1080W * 1920H；

Output: 720W * 1280H

Raw: 1080W * 1280H；

Output: 720W * 1280H
Shutter Type

Rolling shutter

Global shutter
Frame of View (FOV)

Horizontal: 60°, Vertical 36°, Diagonal: 67°
Frame per second

15
Distortion Rate

≤ 0.5%

Built-In Algorithms
Biometric Type Face Palm
Recognition Distance 40cm – 120 cm 18cm - 40cm
Posture Adaptability (by Default) Yaw ≤ 30°, Pitch ≤ 30°, Roll ≤45° Yaw ≤ 45°, Pitch ≤ 30°, Roll ≤ 90°, Bend ≤ 30°
Accuracy *TAR=99%@FAR=0.01% *TAR=98.7%@FAR=0.01%
Recognition Mode 1:1, 1:N
Recognition Speed < 100ms < 140ms
Face Attribute Age, Gender, Expression classification N/A
Liveness Detection Infrared-visible light mode; Infrared light mode Infrared light mode
Face Mask Detection Yes N/A
Capacity On Module 30,000 5,000
