AMT-FAM-10

Dual-Lens Near-Infrared & Visible Light Face Module

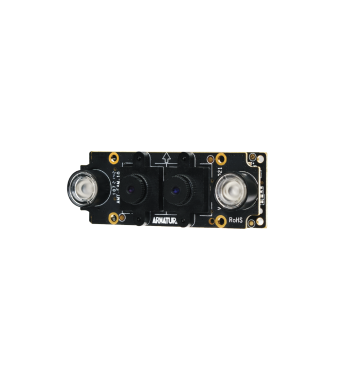

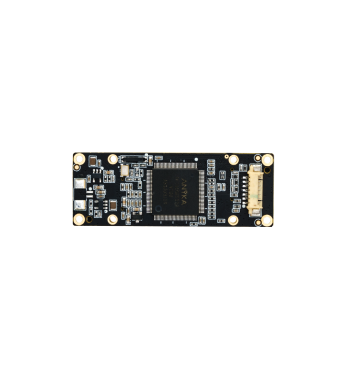

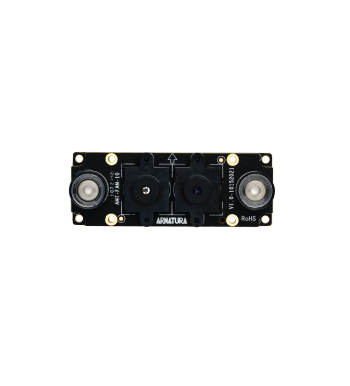

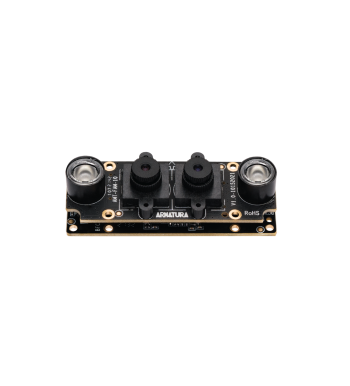

AMT-FAM-10 is a dual-lens face module which captures the Near-Infrared (NIR) grayscale face images and true-color RGB face images for biometric recognition. Powered by Amatura FaceLite and LiveFace algorithms, the dual-lens module design ensures highest image quality for accurate identification while delivering highly secure liveness detection for anti-spoofing protection.

  • AMT-FAM-10 is a dual-lens face module which captures the Near-Infrared (NIR) grayscale face images and true-color RGB face images for biometric recognition. Powered by Amatura FaceLite and LiveFace algorithms, the dual-lens module design ensures highest image quality for accurate identification while delivering highly secure liveness detection for anti-spoofing protection.
  • The built-in wide dynamic range (WDR) imaging sensors and infrared LED together allow the module to capture superior quality face images from a wide range of distance and in varying indoor and most outdoor environments.
  • The fusion of infrared and visible light imaging technologies allows FaceLite and LiveFace Algorithms to perform highly accurate liveness detection, distinguishing live individuals from imposters on paper print, video record or digital photo, and delivering highly secure anti-spoofing protection for biometric authentication applications.
  • Wide field-of-view of the module lens makes face enrollment and authentication fast and simple for individuals having varying heights.
  • Single 2-in-1 USB 2.0 cable provides both data communication and power to the module.
  • Compact, light-weight size with USB 2.0 interface makes an easy integration with a wide range of hardware devices, such as time clocks, physical access control devices, intercom terminals, lockboxes, storage lockers, point of sales terminals, ATM and more.
  • 100% hands-free user experience. The module provides a simple, natural, hygienic, non-invasive, and stress-free way for identity authentication. This is utmost important to prevent the spread of virus when the device is used in public.
  • For price-conscious customers, the hardware module together with FaceLite or LiveFace SDK provides a cost-effective biometric authentication solution.
  • AMT-FAR-10 reader enclosure embeds the AMT-FAM-10 module.

General Information

Interface USB 2.0
Power Supply DC 5.0V/ 400mA
Power Consumption
Operating Temperature -10°C ~ 45°C / 14°F ~ 113°F
Storage Temperature -20°C to 80°C / -4°F ~ 176°F
Operating Humidity 0 ~ 90% RH
Module Dimensions Module: 60.0(L) * 22.0(W) * 18.3(H) mm (±1mm)
  Reader: 95.5(L) * 29.0(W) * 26.4(H) mm (±1mm)
SDK Armatura FaceLite SDK 12.0
Certification CE, FCC, RoHS, WHQL

Sensor

Camera Type Visible Light Camera Infrared Light Camera
CMOS 1 / 2.7” HDR
Dynamic Range 83dB
Optical Wavelength 440 nm ~ 650 nm 850 nm
Image Type 24-bit RGB true color 256 Grayscale Levels
Image Resolution 720W * 1280H 720W * 1280H
Default Output Format MJPEG
Distortion Rate ≤1%
Field of View Horizontal: 40°; Vertical: 65°; Diagonal: 74°
Maximal Frame Rate 12 fps
Recognition Distance 40cm ~ 90cm /16 inch ~ 35 inch
