ProCapture-X

POE Fingerprint Access Control Terminal

  • Modern Design & Interactive UI
  • Multiple Verification Modes: Fingerprint / Card / Password
  • Outstanding Performance With Dry, Wet
    and Rough Fingers

ProCapture-X is a POE fingerprint access control terminal with the most advanced Z-ID technology, which not only possesses outstandingly high identification rate towards dry, wet
and rough finger, but also provides the utmost security with its live finger detecting capability.

The device is designed in horizon style design and is equipped with touch keypad, which provides a superior touching experience. It also offers flexibility standalone installation or with any third-party access control panel that supports standard wiegand signal. TCP/IP, and Wi-Fi (Optional) are available that the device can be used in different networks.

  • Modern Design & Interactive UI
  • Revolutionary Z-ID Fingerprint Sensor
  • Multiple Verification Modes:
    Fingerprint / Card / Password
  • Outstanding Performance With Dry, Wet
    and Rough Fingers
  • Wireless Network
    * Wi-Fi Connection

Capacity

Fingerprint      20,000
Cards                50,000
Transaction      500,000

Compatibility

Wiegand Slave Reader
RS485 FP Slave Reader
ZKBioSecurity Software

Hardware

1.2GHz High Speed CPU
Memory 128MB RAM / 256MB Flash
Z-ID Fingerprint Sensor
2.4 Inches TFT-LCD Screen
125KHz EM Reader / IC Card(Optional)
Hi-Fi Voice & Indicator
Tamper Switch Alarm
Touch Keypad
POE(Standard IEEE 802.3at)
Wireless doorbell(Optional)

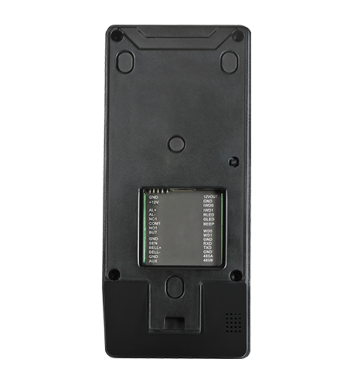

Access Control Interface:

Lock Relay Output
Alarm Output/Auxiliary Input
Exit Button / Door Sensor
Security Relay Box

Special Functions:

Multiple Verification Modes
Alive Finger Detection
ZK Encrypted Card(Optional)
Fingerprint Card(Optional)

Standard Functions:

Access Levels / Groups / Holidays
DST / Bell Schedule
Duress Mode
Anti-Passback
Record Query
Custom Wallpaper & Screen Saver

Communication

TCP/IP
RS485 (For fingerprint&card Reader)
USB Host
Wiegand Input / Output
Wi-Fi(Optional)

Additional Info

Working Temperature: 0°C ~ 45 °C
Dimensions: 200.5 × 88.5 × 28.7 mm.
Fingerprint Algorithm ZKFinger v10.0
Fingerprint: FAR0.0001% FRR0.01%
Package Includes 12V 3A Power Supply

Power

Operating Voltage 12V DC 3A
Current Draw < 500mA
