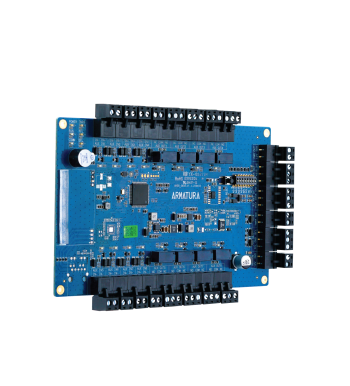

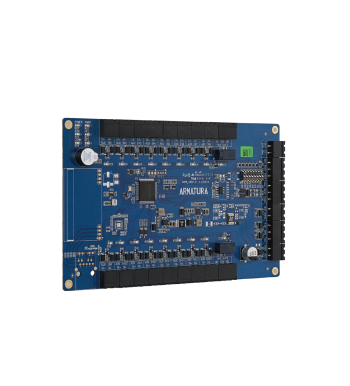

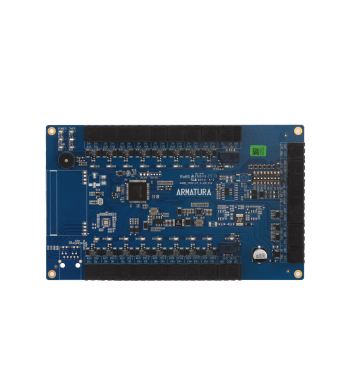

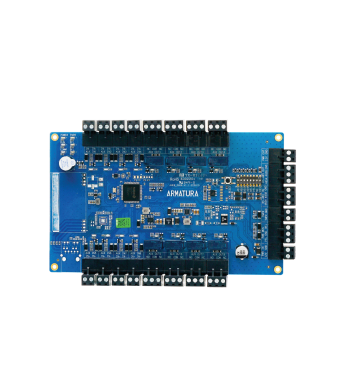

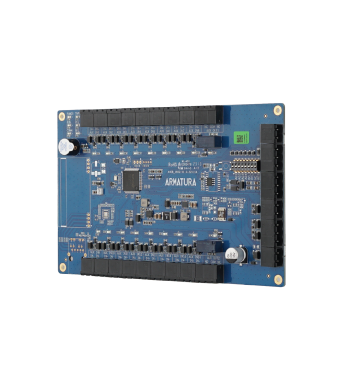

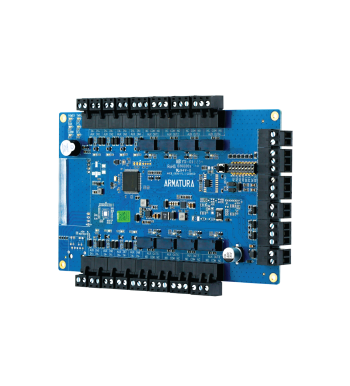

AHEB Series

I/O Expansion Board

  • Scalable
  • Supervised Inputs
  • 3rd Party Integration
  • Certified OSDP Communication

3rd Party Integration

  • Provides Restful API for 3rd-Party Integration
  • Supports OSDP Communication Protocol for all 3rd Party Reader Integration
  • Seamlessly Integrated with DOP & DOC system
  • Supports Common Building Management System Communication Protocol, OPC, BACnet, Modbus

Programmable Input States with Time Zone Management

  • Supervised and programmable Inputs states (In-Active, Active, Short, Open) and input time can be configured through the Armatura One security platform

Scalable

  • Supports up to 129 Access Points
  • Supports up to 12,801 Inputs and Outputs
  • Supports up to 400,000 users and 50,000 biometrics Templates

Supervised Inputs

  • Supports 4-states monitoring inputs, detect as low as 5% Ohms in the circuit

General Information
  AHEB-0808 AHEB-1602
Primary Power 12 - 24 VDC ± 20%, 550 mA maximum
RS-485 Connectivity Input: RS-485 standard / OSDP V2.2
(Dedicated for AHSC-1000/ AHDU series controller communication)
Output: RS-485 standard / OSDP V2.2
(Dedicated for AHEB series I/O expansion board communication)
Number of Ports 1*RS-485
8*supervised input (AUX IN)
8*relay output (AUX OUT)
1* power Input (PWR IN)
1*power output (PWR OUT)
1*power detection (AC Fail)
1* backup battery detection (BAT Fail)
1*tamper input (TMPR)		 1*RS-485
16*supervised input (AUX IN)
2*relay output (AUX OUT)
1* power Input (PWR IN)
1*power output (PWR OUT)
1*power detection (AC Fail)
1* backup battery detection (BAT Fail)
1*tamper input (TMPR)
Inputs

8 inputs

4 state supervision, resistor values (5% tolerance),
Normally open contact: use 1.2k, 2.2k. 4.7k or 10k
Normally closed contact: use 1.2k, 2.2k. 4.7k or 10k

16 inputs

4 state supervision, resistor values (5% tolerance),
Normally open contact: use 1.2k, 2.2k. 4.7k or 10k
Normally closed contact: use 1.2k, 2.2k. 4.7k or 10k
Outputs

8 relays

8* Form-C with dry contacts

2 relays

2* Form-C with dry contacts

AHSC/ AHDU Interface
RS-485 Protocol AES-128, OSDP V2 Secure Channel
OSDP Mode 9600-115200 bps, OSDP V2.2, asynchronous, half-duplex, 1 start bit, 8 data bits, and1 stop bit.
Maximum cable length: 2,000 ft. (609.6m)
Data Inputs

OSDP supported.

Maximum cable length: 500 ft. (152m)

Cable Requirement
Power & Relays 12 - 24 VDC ± 20%, 550 mA maximum
RS-485 Port One twisted pair with drain wire and shield, 120 ohm resistance, 22-18 AWG,
Maximum cable length: 3937ft (1200m)

Mechanical
Dimensions 7.6” W x 4.6” L x 0.7” H (193 x 116 x 17.5mm)
Weight 5.8oz (165.3g)
Mounting Wall Mount

Environmental
Temperature −4°F~131°F（-20°C~55°C）, Operating & Storage
Humidity 0-95% RHNC
Certification(s) CE, FCC, RoHS, UL294
Security Rating Data Storage Encrypted with Certified EAL6+ Crypto Chipset

Software Interface
Supported Software Armatura One Security System, Cielo365 (coming soon)
