ZK9500
  • Support fingerprint detection function
  • Available SDK for development
  • Quick recognition of dry, wet and rough fingerprint

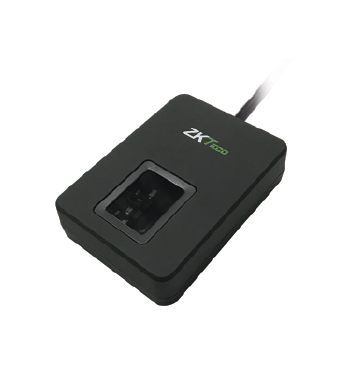

ZK9500, a latest optical fingerprint scanner, is developed by ZKTeco. It supports finger detection and captures fingerprint image fast, with high resolution. The product is small, easy to use fingerprint registration on the desktop. Low power consumption, it also applies to Android tablet and mobile phone. We provide SDKs for customers to develop their own applications.

  • Support fingerprint detection function
  • Quick recognition of dry, wet and rough fingerprint
  • Available SDK for development
  • High Speed USB 2.0

Technical Specifications

Model Name

ZK9500

Material

optical

CPU

280MHz DSP

Flash

32 MB

SoC

RTOS

Image Quality

2 million pixels CMOS

Encrypted Fingerprint Data

YES

Sunlight Operation

Must, dark field, and automatic gain/exposure

Water Splash

No damage and normal operation is ensured

Dry, Wet, or Rough Fingerprints

Work well

Power Consumption

5V:200mA scanning;5V:60mA idle(waiting for finger)

Live Fingerprint Detection

YES

LED

Green

Product Certifications

FCC, CE, RoHS

Power Voltage

5V

Power Current

200mA

Communication

USB 2.0/USB1.1

Interface Socket

USB Type A

Image Resolution

500 dpi

Effective Collecting Area

15.24 * 20.32 mm (FAP20)

Collecting Area

16.5 * 23 mm

Image Size

300 * 400 pixel(FAP20 )

Dimension

75.5 * 53.2 * 19 mm (L*W*H)

Image Format

RAW,BMP,JPG

Template

ZKFinger V10.0

Gray Level

256

Operating Environment

-20 °C ~ +50 °C; 90% r.h.

ZK9500

0.48 Mb Data Sheet
2018-04-01

ZKFingerSDK_Windows_V10.0

72.79 Mb Software
2018-04-01
