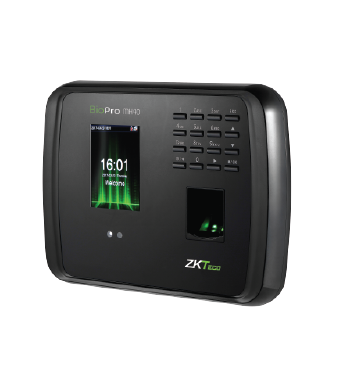

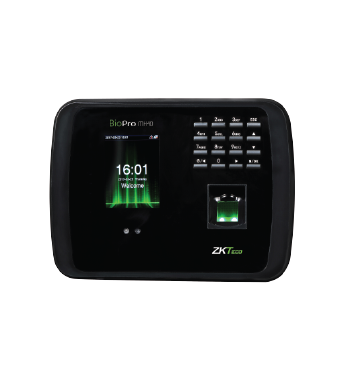

BioPro MH40

BioPro MH40 is an innovative product featured with ZK advanced fingerprint and face recognition technologies. It supports multiple verification methods including face, fingerprint, card, password, combinations between them and basic access control functions.

User verification is performed in less than 1 second, which streamlines the process of access. The communication between the BioPro MH40 and PC is by TCP / IP or USB interface for manual data transfer. Its sleek design fits perfectly in any environment.

  • 1,500 Faces, 2,000 Fingerprints, 100,000 Records and 2,000 Cards.
  • Multi-languages.
  • Communication: TCP/IP, USB-Host, Wi-Fi (Optional).
  • High verification speed.
  • Professional firmware and platform make it more flexible.
  • Intuitive and stunning UI design.
Face Capacity 1,500
Fingerprint Capacity 2,000
ID Card Capacity 2,000 (Optional)
Record Capacity 100,000
Display 2.8-inch TFT Screen
Communication TCP/IP, USB-Host, Wi-Fi (Optional)
Standard Functions SMS, DTS, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 Input, Photo ID, Camera, Multi-verification, 12V Output, ADMS, RS232 Printer (Optional Cable)

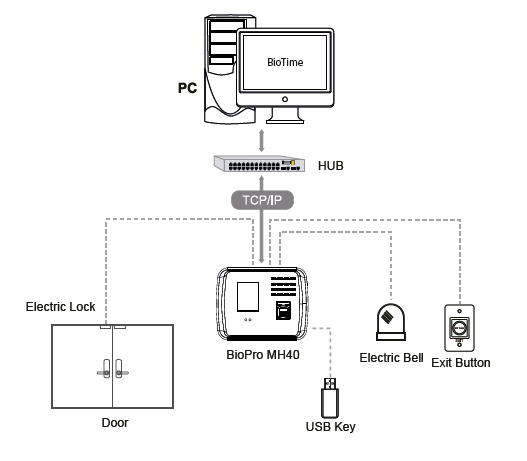

Interface for Access Control 3rd Party Electric Lock, Exit Button, Alarm
Optional Functions ID / MF Cards, Work Code
Power Supply DC 12V 1.5A
Verification Speed   ≤1 Sec.
Operating Temp. 0°C - 45°C
Operating Humidity 20% - 80%
Dimension 200.25 x 148 x 33.04 mm (Length*Width*Thickness)
Net Weight 380g
';

BioPro MH40

1.23 Mb Data Sheet
2018-06-25

BioPro MH40 Quick Start Guide

1.31 Mb Quick Start Guide
2018-06-25

BioPro MH40 User Manual

4.88 Mb User Manual
2018-06-25
